Maqueen v4.1 - Robô Educativo para micro:bit (ROB0148-EN)

: ROB04008
35,69 €
32,44 € Poupe 3,25 €

Com o Maqueen da DFRobot pode transformar o seu micro:bit da BBC num robô programável, ideal para STEM education.

Idade aconselhada: 8 +

Nota: Não incluí pilhas nem o BBC micro:bit

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Para informações  de montagem e informações sempre atualizadas sobre este produto por favor aceda à página do fabricante aqui

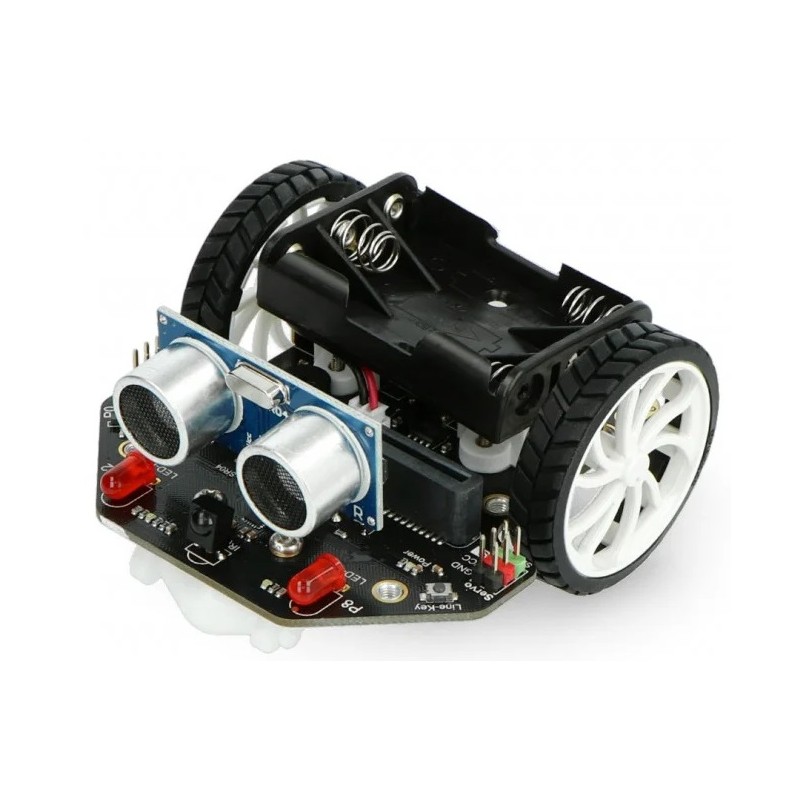

I am Maqueen

Hello, my name is Maqueen, is a graphical programming robot for STEM education, which inherits playability and simple operation of micro:bit. The Mini-body, interesting features and plug-and-play allow children to quickly learn graphic programming in entertaining, nurturing children's interest in science and logical thinking.

Suggest Age: 8 +

Maqueen is accessible to Mind+ Programming platform now. Mind+ is a Scratch3.0-based graphical programming platform from DFRobot, supporting python, Arduino and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules and related educational products.

Remind: micro:bit board and batteries are not included.



FEATURES

  • Support for Makecode, will support Scratch and python later.
  • Small size, flexible movement.
  • All-metal miniature gear motor, good quality, strong driving force.
  • Line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, etc. ... full-featured, highly expandable.
  • Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
  • Easy to install, easy to use.
  • SPECIFICATION
  • Supply Voltage: 3.5V~5V DC ( Three AAA batteries or 3.6V~3.7V lithium battery )
  • Infrared Grayscale Sensor(High-low level) x 2
  • Buzzer x 1
  • Infrared Receiver (NEC decoder) x 1
  • LED Lights (High-low level control) x 2
  • RGB Ambient Light (16 million colors) x 4
  • SR04, SR04P Ultrasonic Interface(5V) x 1
  • I2C Interface (3.3V) x 1
  • Gravity Extension Interfaces (P1, P2) x 2
  • N20 All-metal Gear Motor x 2
  • Motor Reduction Ratio: 1:150
  • Maximum Rotate Speed: 133 rpm
  • Motor Drive Mode: PWM motor drive
  • Bracket and Protective Cover Extension M3 Screw Hole x 6
  • Programming Method: Makecode graphical programming, Mind+ graphical programming (based on Scratch 3.0)
  • Dimension: 81mm x 85 mm x 44mm/3.19 x 3.35 x 1.73in
  • Weight: 75.55g



DOCUMENTS



SHIPPING LIST

  • micro:Maqueen micro:bit Educational Programming Robot Platform *1 (BBC micro:bit boardno tincluded)



micro: Maqueen micro:bit Educational Programming Robot Platform micro: Maqueen micro:bit Educational Programming Robot Platform micro:bit - an Educational & Creative Tool for Kids, micro:bit micro: Maqueen micro:bit Educational Programming Robot Platform micro: Maqueen micro:bit Educational Programming Robot Platform micro: Maqueen micro:bit Educational Programming Robot Platform mindplus, mind +, mind+ micro: Maqueen micro:bit Educational Programming Robot Platform

micro: Maqueen micro:bit Educational Programming Robot Platformgif02.gifgif03.gif
Crazy Maqueen Tutorial micro: Maqueen micro:bit Educational Programming Robot Platform micro: Maqueen micro:bit Educational Programming Robot Platform


Certificate of ROB0148
