PCB Flexível Protoboard 0.4mm 18x30cm

: CEL05027
10,49 €
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

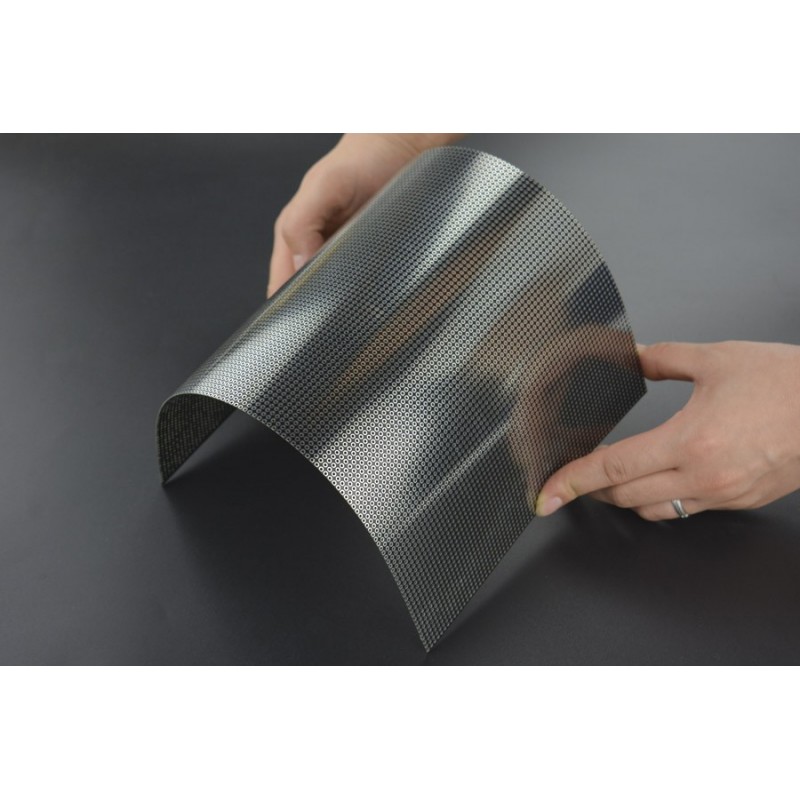

This is a soft thin protoboard with a hole diameter of 1mm, a hole spacing of 2.54mm. It can be soldered DIP and SMD components, and the thickness is only 0.4mm. The proto board can be appropriate bending in any direction (depending on the size of the protoboard). In the actual application, it can be cropped to any size and shape according to your needs, making circuit experiments and design more convenient and fast.

Project: Make a shiny dice for monitoring battery capacity

The materials you may need:

Gravity: I2C 3.7V Li Battery Fuel Gauge

Beetle - The Smallest Arduino

Single-Sided ProtoBoard ( flexible PCB )

LED Lamp Beads  ×21

Crystal Epoxy Resin and metal complex dyes

SPECIFICATION

  • Dimensions: 18cm*30cm (7''x11.8'')
  • Substrate material: high-quality FR-4
  • Flame retardant properties: VO
  • Thickness: 0.4mm
  • Aperture: 1mm (5% error)
  • Hole spacing: 2.54mm (100mil)

SHIPPING LIST

  • Single-Sided ProtoBoard (18x30cm) x1
CEL05027
