Sistema de prototipagem para BBC Micro:bit

: PCO07023
12,11 €

Este sistema de prototipagem para o micro:bit BBC é uma óptima maneira de começar a fazer projectos sem a necessidade de soldar.

Nota: O micro:bit, as 2 pilhas AAA e o suporte das pilhas não está incluído.

Quantidade
Sem Stock


Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Please Note: BBC micro:bit, 2 x AAA Battery Cage and 2 x AAA Batteries are NOT included. If you also require a BBC micro:bit, you can order one here.

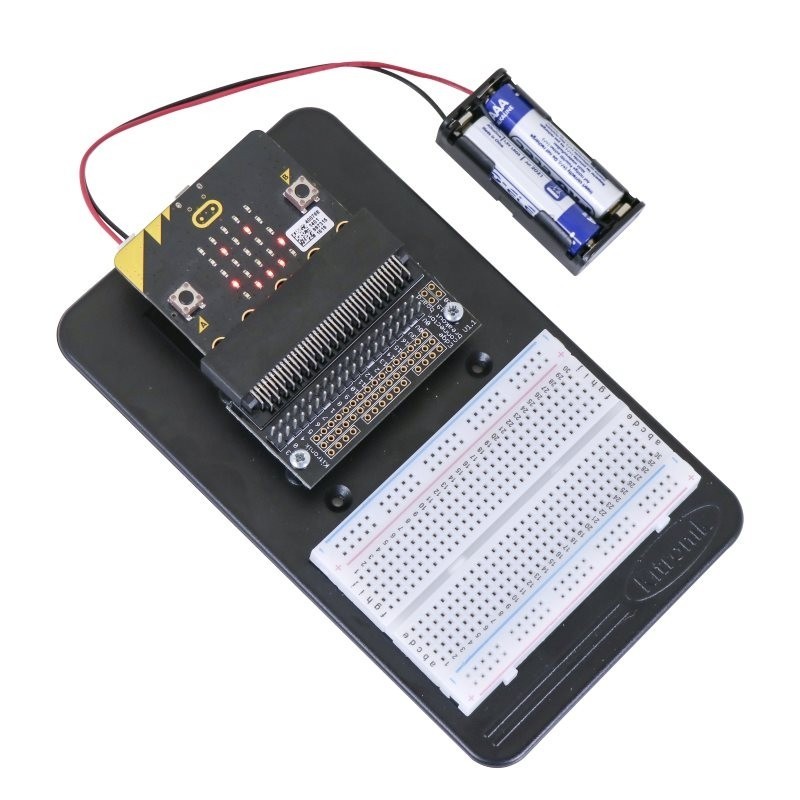

This Prototyping System for the BBC micro:bit is a great way to start making circuits and making experiments without the need to solder.

This prototyping system kitronik specially designed Edge Connector Breakout Board for BBC micro:bit that gives full access to the pins on the bottom of the BBC micro:bit. The BBC micro:bit pins are broken out to a row of pin headers, the SCL and SDA pins are separated at the edge of the board providing easy identification. The PCB includes a prototyping area with 3V, 0V and unconnected rows that can be soldered to. This allows easy connection of switches, sensors and any pull-up or pull-down resistors etc. as required.

This prototyping system is used in conjunction with a Small Prototype Breadboard. This makes it easy to connect additional components using the included jumper wires. No soldering required.

5603_inventors_kit_for_the_bbc_microbit_

Please Note: BBC micro:bit is NOT included.

Note:

This kit requires assembly.

Features:

  • No soldering is required.
  • Breaks out 21 pins from the BBC micro:bit using the Pre-built Edge Connector Breakout Board for BBC micro:bit.
  • Small Prototype Breadboard included so you can use additional components.
  • Run your own custom code from your BBC micro:bit to interact with external components.

Contents:

  • 4 x Pan Head M3 Machine Screws.
  • 1 x Small Prototype Breadboard.
  • 10 x Jumper Wires Male to Male.
  • 10 x Jumper Wires Male to Female.
  • 1 x Mounting Plate.
  • 1 x Edge Connector Breakout Board for BBC micro:bit - Pre-built.

Video:

Requires:

Resources:

PCO07023
