• DESCONTINUADO
pcDuino (mini-pc + Arduino)
  • pcDuino (mini-pc + Arduino)

pcDuino V2 (mini-pc + Arduino)

:PCO01010
59,90 €
preço com IVA incluído

pcDuino é  um mini PC que corre um SO como os Pc normais (ubunto ou Android ICs) e possui interface fisicos compativeis com Arduino

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste ou outro produto não hesite em contactar-nos



DETAILS

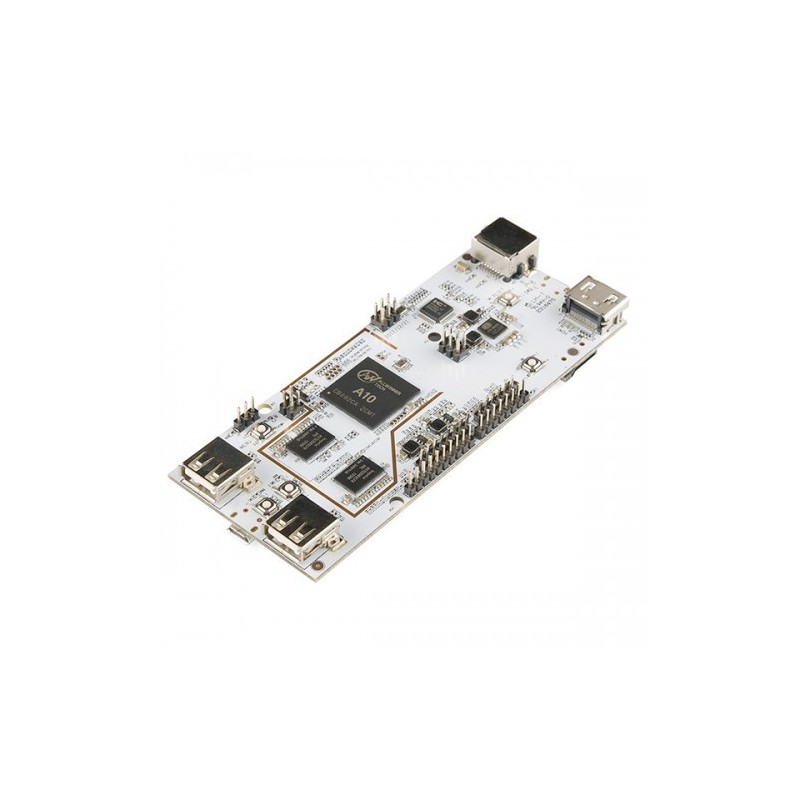

pcDuino V2 is a mini PC platform that runs PC like OS such as Ubuntu and Android ICS. It outputs screen to HDMI. Moreover, it has hardware headers interface compatible with Arduino.
Dimensions:
  • 125mm X 52mm
Features:
  • 1GHz ARM Cortex A8 CPU
  • GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core
  • 1GB DRAM
  • Onboard Storage: 4GB Flash, microSD card (TF) slot for up to 32GB
  • Arduino-Style Peripheral Headers (Adapter Needed for Shield Form-Factor)
  • HDMI Video Output
  • Linux3.0 + Ubuntu12.04 and Android ICS 4.0 Supported
  • 0.1" Spaced GPIO Headers
  • RJ45 Ethernet Connection
  • Power Requirements: 2A @ 5VDC
  • API to access the following interfaces:
    • UART
    • ADC
    • PWM
    • GPIO
    • I2C
    • SPI
  • Program in C, C++ with GNU tool chain
  • Program in Java with standard Android SDK
