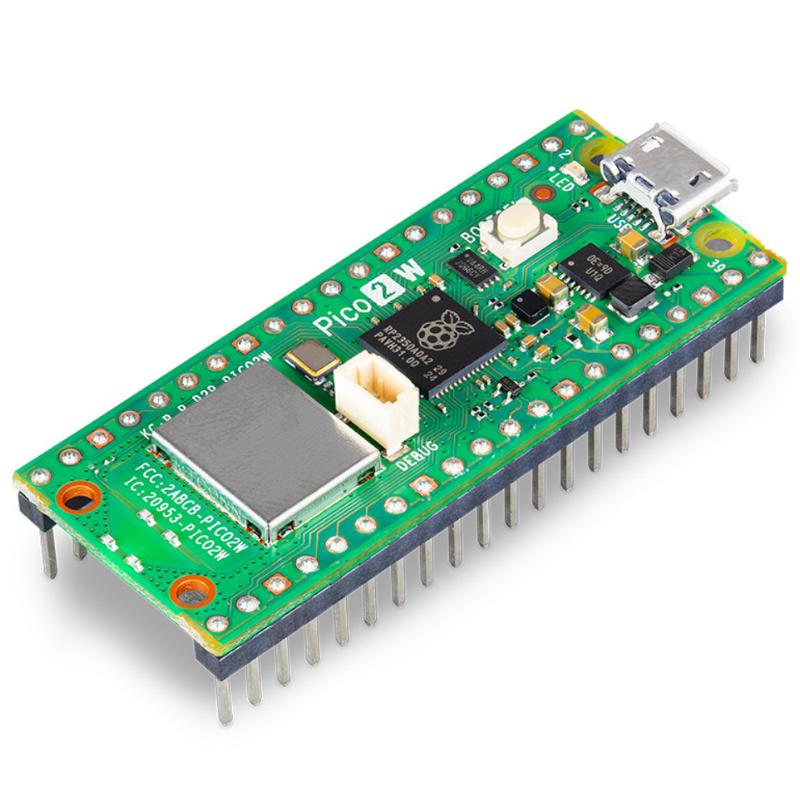

Raspberry Pi Pico 2 W (headers soldados) - SC1634

SC1634 is a Raspberry Pi Pico 2W microcontroller board. It is built on RP2350: our new high-performance, secure microcontroller. With a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, new security features, and upgraded interfacing capabilities, the Raspberry Pi Pico 2 delivers a significant performance and feature boost, while retaining hardware and software compatibility with earlier members of the Raspberry Pi Pico family. RP2350 provides a comprehensive security architecture, built around Arm TrustZone for Cortex-M, and incorporating signed boot, 8KB of antifuse OTP for key storage, SHA-256 acceleration, a hardware TRNG, and fast glitch detectors. The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open hardware Hazard3 RISC-V cores.

1. 2.4GHz 802.11n wireless LAN, Bluetooth 5.2 w/ on-board antenna and modular compliance certification

2. Memory: 520KB on-chip SRAM, 4MB on-board QSPI flash

3. Connectivity: 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 (Raspberry Pi Pico 2W only)

4. Interfacing: 26 multi-purpose GPIO pins, including 4 that can be used for ADC

5. Peripherals: 2 x UART, 2xSPI controllers, 2xI2C controllers, 24xPWM channels

6. 1xUSB 1.1 controller and PHY, with host and device support and 12xPIO state machines

7. Input power range from 1.8 to 5.5V DC

8. 182000 hours MTBF1 ground benign and 11000 hours MTBF1 ground mobile

9. Form factor: 21mm × 51mm

10. Operating temperature range from -20°C to +85°C
