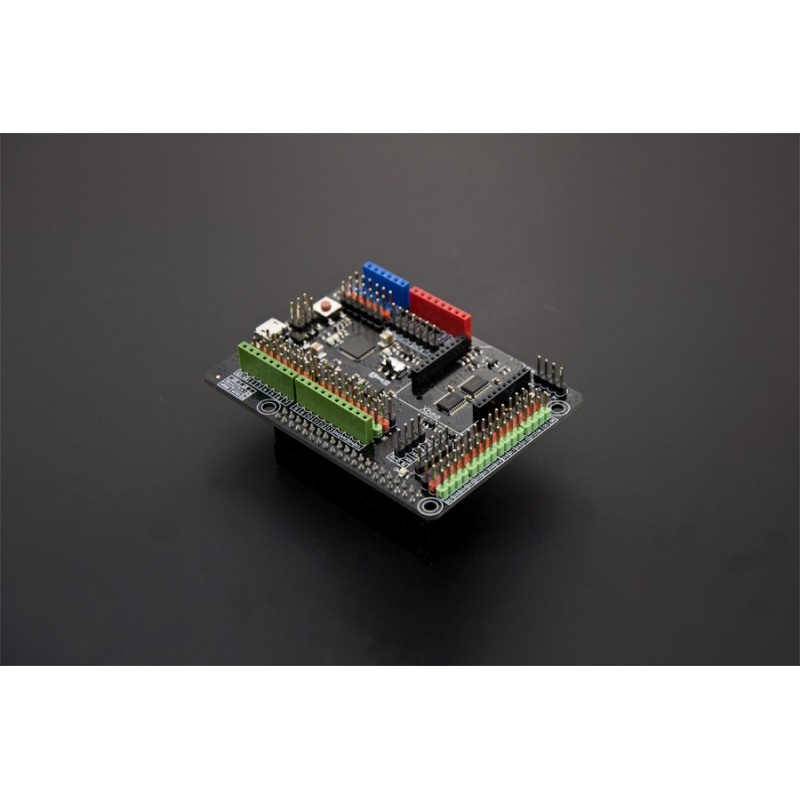

Arduino Leonardo compatível para Raspberry Pi B (compatível com RPi 2 Model B)

: ARD02042
19,43 €

Pretende tirar partido do que há de melhor na sua Raspberry Pi e num Arduino?

Com este HAT junta um Arduino Leonardo à sua Raspberry Pi e tudo o que é controlo de baixo nível como mover servo motores, ler sensores e entradas analógicas, ficam do lado do Arduino e a sua Raspberry fica livre para todo o processamento de alto nível, como o interface gráfico, as comunicações Wifi, bluetooth, etc...

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

What's the difference between Raspberry Pi and Arduino?

We all know Raspberry Pi is a mini-computer running on Linux operating system; while Arduino is a microcontroller running on simple I/Os. Both of them focuses on very different areas. Compared with Arduino, the Pi gets much better computing performance.

So What happens when a Raspberry Pi meets an Arduino?

A simple example would be, when building a mobile robot, we use the Raspberry Pi to extend its vision and get a nice tiny monitor. Meanwhile, Arduino handle nicely with the motor driving part and delivers fast responses like obstacle avoidance. Because, without the OS, the response time of rapid changes on the Arduino is much shorter. Also the high performance Pi can deals much easily with wireless communications, imaging and running complex algorithm.

Therefore, with the Arduino and Pi together, you get a powerful "brain" and "cerebellum" for your project, at one time.



Specification

  1. Onboard Microcontroller: ATmega32u4

  2. Arduino Leonardo Chip

  3. Arduino Compatible pin mapping

  4. Compatible with All arduino standard shield and sensors

  5. System Voltage: 5v

  6. Arduino Digital I/O: 20

  7. Arduino Analog I/O: 6

  8. Raspberry Pi B+ GPIO: 16

  9. Raspberry Pi B+ I2C: 1

  10. Raspberry Pi B+ ID_I2C: 1

  11. Raspberry Pi B+ SPI: 1

  12. Raspberry Pi B+ TTL UART: 1

  13. Dimension: 86mm x 61mm x 26mm (3.46" x 2.20" x 1.02")



Optional Parts

  1. Relay Module V3.1 for IOT AC control

  2. Analog pH Meter Kit for monitoring Water quality of your pool

  3. SHT1x Humidity and Temperature Sensor

  4. Motion Sensor for security and human detection

  5. A nice and low cost LCD12864 display

  6. 2A Motor Shield for robot building

  7. Dual Bipolar Stepper Motor Shield

  8. GSM/GPRS and GPS Shield



Projects



Documents



Shipping List

  1. Arduino Expansion Shield for Raspberry Pi B+/2B/3B/3B+/4B x1

  2. 20cm micro USB cable x1

  3. CR1220 button cell x1
