Analisador Lógico USB 24MHz 8 canais - Sparkfun TOL-18627

: FER02062
32,50 €
preço com IVA incluído

Este analisador lógico USB de 8 canais, com suporte para taxas de amostragem até 24MHz, constitui uma opção de boa qualidade e económica, o que o torna uma ferramenta excelente e fácil de utilizar.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Product Overview

Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.

These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included USB-C cable. This logic analyzer works with PulseView -- an open-source, cross-platform signal analysis software suite.

The analyzer ships with Female-To-Female jumper wires. If you're using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyzer to the female headers.



Product includes:

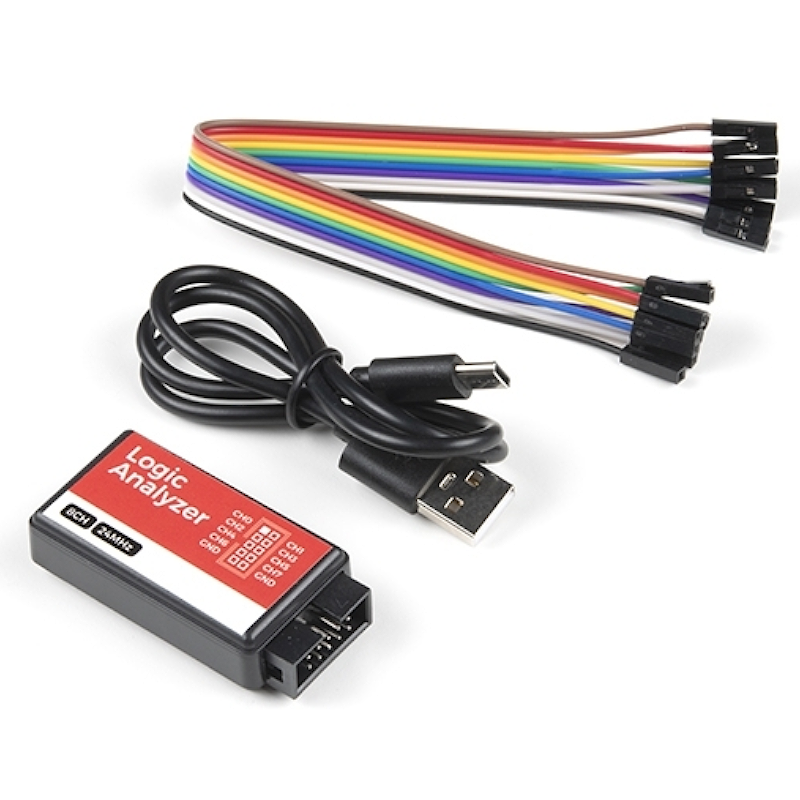

  1. 24MHz/8-Channel USB Logic Analyzer

  2. 10-conductor Female-to-Male Jumper Wires

  3. USB Type C Cable




Features & Specs

  1. 8-channels

  2.  Sampling rate up to 24MHz, configurable down to 20kHz

  3.  5.25V maximum voltage input

    1. 2.0V minimum logic-high

    2. 0.8V maximum logic-low

  4. Input impedance > 100kΩ, 5pF

  5. USB power supply

  6.  USB Type C Connector

  7.  Supports open-source sigrok logic analyzer software

  8.  Cross-platform support: Windows, Mac OS X, Linux, Android, etc.

  9.  Dimensions: 54.7 x 27.4 x 14.1 mm

With this latest revision of the USB Logic Analyzer, the USB Mini B connector was replaced with a more up-to-date USB Type C connector.

FER02062
