- Novo

Este placa UNIHIKER possui um ecrã tátil de 2,8 polegadas, Wi-Fi e Bluetooth. Está equipado com um sensor de luz, um acelerómetro, um giroscópio e um microfone. Com co-processador incorporado, é capaz de comunicar com vários sensores e atuadores analógicos/digitais/I2C/UART/SPI. Para além disto, vem com um software pré-instalado, permitindo um arranque incrivelmente rápido e fácil. Por último, este produto já conta com uma caixa de silicone preta para proteger a placa.
Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.

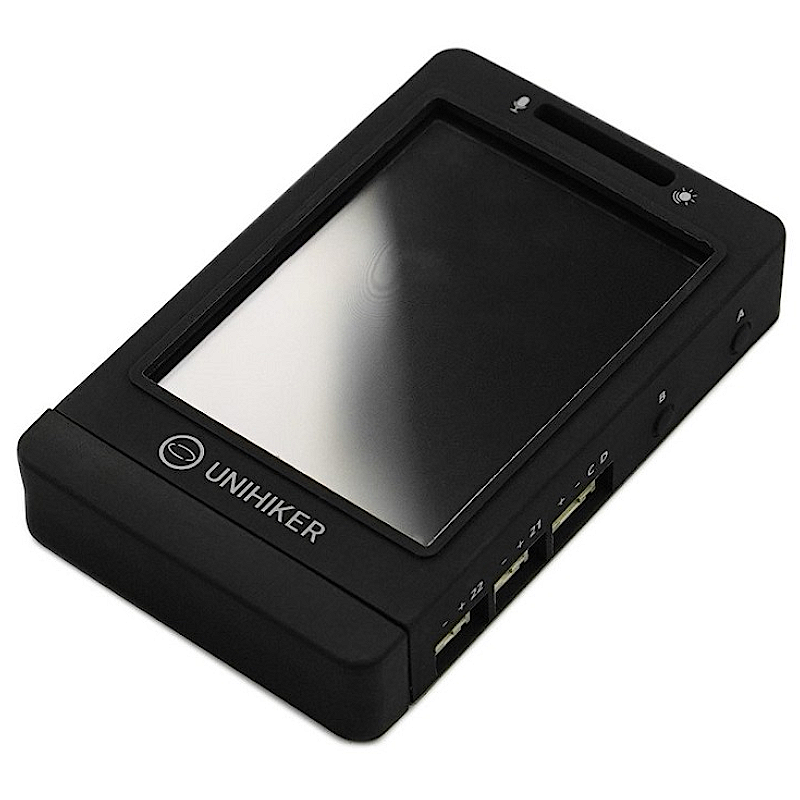

This package includes a UNIHIKER M10 single-board computer and a Silicone Case (Black) designed to enhance durability and reduce screen breakage.
UNIHIKER is a single-board computer that brings you brand new experience. It features a 2.8-inch touchscreen, Wi-Fi and Bluetooth. It is equipped with light sensor, accelerometer, gyroscope and microphone. With built-in co-processor, it is able to communicate with various analog/digital/I2C/UART/SPI sensors and acuators.
UNIHIKER brings a whole new experience for developers with its pre-installed software, allowing for an incredibly fast and easy start. Featuring a built-in Jupyter Notebook (a browser-based programming environment), developers can program the single board computer using a smartphone or tablet.
Of course, just like other single board computers, UNIHIKER supports VS Code, VIM, and Thonny. The integrated PinPong control library allows developers to directly control UNIHIKER's built-in sensors and hundreds of connected sensors and actuators using Python.
The built-in SIoT service on UNIHIKER allows users to store data through the MQTT protocol and provides real-time web data access. The best part is that all data is stored within the device itself.
Compact, feature-rich, and user-friendly, UNIHIKER offers an innovative development experience for learning, coding, and creating. Unleash your imagination and embark on a new journey with UNIHIKER.
Built-in 2.8-inch Touch Screen
Enables you to visualize sensor data in the form of charts, graphs, and even dynamic animations.
Incredibly Fast and Easy Start
Using Python to Sense and Control
Built-in IoT service
Can be Programmed Wirelessly
UNIHIKER can be programmed from a computer, an iPad, even a phone.
It also supports Hotspot, you can play it from anywhere.
Supports Popular Coding Software
Rich Interfaces and High Expandability
2x3A DC Motor Driver Carrier Board for UNIHIKER
Expand the capabilities of the UNIHIKER with this motor driver carrier board, featuring a dual DC motor drive, RGB lights, and infrared transmission/reception. It offers flexible power supply options and extensive I/O and I2C port expansion.
AIoT
Robot
STEM
CPU: Quad-Core ARM Cortex-A35, up to 1.2GHz
RAM: 512MB
Flash: 16GB
OS: Debian
Wi-Fi: 2.4G
BT: Bluetooth 4.0
Screen: 2.8inch, 240×320, Touch Screen
MCU: GD32VF103
Sensor: Button, Microphone, Light Sensor, Accelerometer Sensor, Gyroscope Sensor
Actuator: Led, Buzzer
Port: USB Type-C, USB-A, Gravity 3pin&4pin port, Edge connector
Power: 5V 2A for USB Type-C
Size: 51.6mmx83mmx13mm
UNIHIKER M10 Single Board Computer x1
Silicone Case for UNIHIKER Single Board Computer M10 (Black) x1
Type-C USB cable x1
Double Sided PH2.0-3P white 20cm silicone wire x4
Double Sided PH2.0-4P white 20cm silicone wire x2
