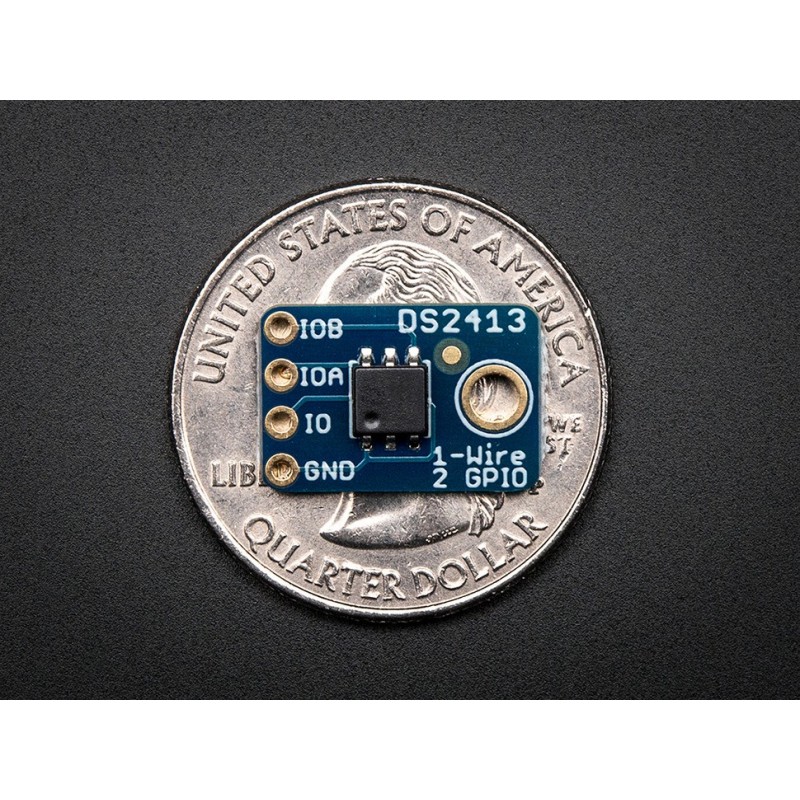

2 GPIO via 1-Wire BUS - DS2413
  • 2 GPIO via 1-Wire BUS - DS2413

2 GPIO via 1-Wire BUS - DS2413

:COM08001
4,55 €
preço com IVA incluído

Agora pode utilizar quantos módulos DS2413 desejar numa única linha I/O, cada um unicamente endereçavel e partilhando um único pinoo I/O sem problemas. As duas linhas I/O controláveis (PIOA e PIOB) podem ser utilizadas como entradas ou saidas.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



  • You're too cool for I2C, and SPI has so many wires, 8-bit parallel... how can that be fashionable!? You are a 1-Wire kinda gal, and you want more 1-Wire breakouts in your life to complement all of your great engineering. Well rock on, because here you go, it's a 1-Wire controller with two open-drain GPIO.

    They are open-drain, so if you want to power an LED or something, you'll need a remote power supply (see Maxim's product page for more details)

    We have a basic Arduino sketch that uses the OneWire library to communicate with this chip. Don't forget to add the 4.7Kohm resistor from I/O to your 1-Wire controller power supply (3.3V - 5V) on the Arduino side of the wires.

    DS2413 1-Wire Two GPIO Controller Breakout (4:45)

  • TECHNICAL DETAILS

    • Dimensions: 15.78mm / 0.62" x 9.96mm / 0.39" x 2.94mm / 0.11"



    #include <OneWire.h>

    #define DS2413_ONEWIRE_PIN  (8)

    #define DS2413_FAMILY_ID    0x3A
    #define DS2413_ACCESS_READ  0xF5
    #define DS2413_ACCESS_WRITE 0x5A
    #define DS2413_ACK_SUCCESS  0xAA
    #define DS2413_ACK_ERROR    0xFF

    OneWire oneWire(DS2413_ONEWIRE_PIN);
    uint8_t address[8] = { 0, 0, 0, 0, 0, 0, 0, 0 };

    void printBytes(uint8_t* addr, uint8_t count, bool newline = 0)
    {
      for (uint8_t i = 0; i < count; i++)
      {
        Serial.print(addr[i] >> 4, HEX);
        Serial.print(addr[i] & 0x0f, HEX);
        Serial.print(" ");
      }
      if (newline)
      {
        Serial.println();
      }
    }

    byte read(void)
    {
      bool ok = false;
      uint8_t results;

      oneWire.reset();
      oneWire.select(address);
      oneWire.write(DS2413_ACCESS_READ);

      results = oneWire.read();                 /* Get the register results   */
      ok = (!results & 0x0F) == (results >> 4); /* Compare nibbles            */
      results &= 0x0F;                          /* Clear inverted values      */

      oneWire.reset();

      // return ok ? results : -1;
      return results;
    }

    bool write(uint8_t state)
    {
      uint8_t ack = 0;

      /* Top six bits must '1' */
      state |= 0xFC;

      oneWire.reset();
      oneWire.select(address);
      oneWire.write(DS2413_ACCESS_WRITE);
      oneWire.write(state);
      oneWire.write(~state);                    /* Invert data and resend     */
      ack = oneWire.read();                     /* 0xAA=success, 0xFF=failure */
      if (ack == DS2413_ACK_SUCCESS)
      {
        oneWire.read();                          /* Read the status byte      */
      }
      oneWire.reset();

      return (ack == DS2413_ACK_SUCCESS ? true : false);
    }

    void setup(void)
    {
      Serial.begin(9600);

      Serial.println(F("Looking for a DS2413 on the bus"));

      /* Try to find a device on the bus */
      oneWire.reset_search();
      delay(250);
      if (!oneWire.search(address))
      {
        printBytes(address, 8);
        Serial.println(F("No device found on the bus!"));
        oneWire.reset_search();
        while (1);
      }

      /* Check the CRC in the device address */
      if (OneWire::crc8(address, 7) != address[7])
      {
        Serial.println(F("Invalid CRC!"));
        while (1);
      }

      /* Make sure we have a DS2413 */
      if (address[0] != DS2413_FAMILY_ID)
      {
        printBytes(address, 8);
        Serial.println(F(" is not a DS2413!"));
        while (1);
      }

      Serial.print(F("Found a DS2413: "));
      printBytes(address, 8);
      Serial.println(F(""));
    }

    void loop(void)
    {
      /* Read */
      /*
      uint8_t state = read();
      if (state == -1)
        Serial.println(F("Failed reading the DS2413"));
      else
        Serial.println(state, BIN);
      */

      /* Write */
      bool ok = false;
      ok = write(0x3);
      if (!ok) Serial.println(F("Wire failed"));
      delay(1000);
      ok = write(0x0);
      if (!ok) Serial.println(F("Wire failed"));
      delay(1000);
    }
COM08001
