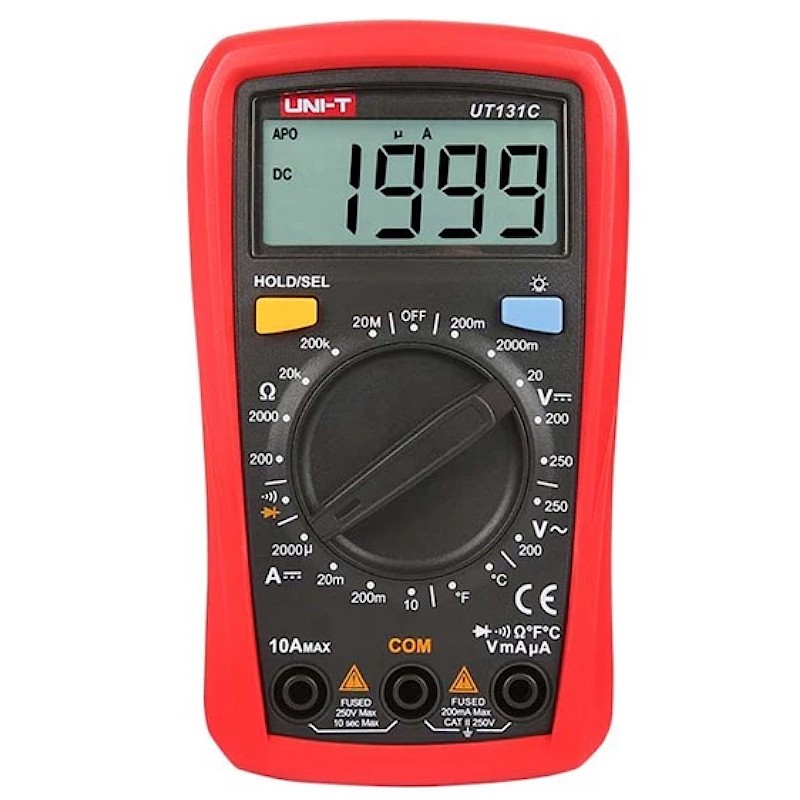

Multímetro Digital UNI-T UT131C

: FER02037
13,41 €

Este multímetro digital com luz de fundo e suporte tem todas as funcionalidades que se eperam de um multímetro funcional e prático.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

UT131C with temperature measuring

New generation of multimeter UT131 series offers a greater measuring standar in the category of low cost multimeters. Innovative and industrial design ensures impact resistance of the multitemer from a two meter height. New layout of LCD display is both more comprehensive and practical for all users, and has a backlight option. Multimeters UT131 series ensure safe usage and measuring according to CAT II standard.

Multimeter functions:
AC voltage measuring - 200 V / 250 V
DC voltage measuring - 200 mV / 250 V
DC current measuring - 200.0 μA / 10.00 A
Resistance measuring - 200.0 Ω / 20.0 MΩ
Temperature measuring: -40°C to +250°C
Continuity test (buzzer)
Diode test
Manual range selection
Reversed polarity detection
Data hold function
Display backlight
Automatic shutdown after being idle for 15 min
Test leads and K-thermocouple included
Low battery indication
Overload protection, fuse protected

Technical parameters:
AC voltage measuring (range, resolution, accuracy) :
200.00 V / 0.1 V / ± 1.2 % + 3
250 V / 1 V / ± 1.2 % + 3

DC voltage measuring (range, resolution, accuracy) :
200 mV / 0.1 mV / ± 0.7 % + 3
2000 mV / 1 mV / ± 0.5 % + 2
20.00 V / 0.01 V / ± 0.7 % + 3
200.0 V / 0.1 V / ± 0.7 % + 3
250 V / 1 V / ± 0.7 % + 3

DC current measuring (range, resolution, accuracy) :
2000.0 μA / 1 μA / ± 1.0 % + 2
20.0 mA / 0.01 mA / ± 1.0 % + 2
200.0 mA / 0.1 mA / ± 1.0 % + 2
10.00 A / 0.01 A / ± 1.2 % + 5

Resistance measuring (range, resolution, accuracy) :
200.0 Ω / 0.1 Ω / ± 1.0 % + 2
2000 Ω / 1 Ω / ± 0.8 % + 2
20.00 kΩ / 0.01 kΩ / ± 0.8 % + 2
200.0 kΩ / 0.1 kΩ / ± 0.8 % + 2
20.00 MΩ / 0.01 MΩ / ±1.2 % + 3

Multimeter conforms to IEC 61010-1, IEC 61010-2-030, CAT II
Dimensions (mm) : 134 x 77 x 47
Power supply : 2 x AAA 1.5 V batteries (included)
Weight : cca 206 g (with batteries)
Operating temperature : 0 - 40°C



Parameters and specifications:

Max. AC voltage: 250 V

Max. DC voltage: 250 V

Max. AC current: 10 A

Max. DC current: 10 A

Measured quantities: AC current, AC voltage, DC current, DC voltage, resistance, temperature

Special Features: Acoustic test, Data Hold, diode test, display backlight, sleep mode

Multimeter resolution: 2000

FER02037
