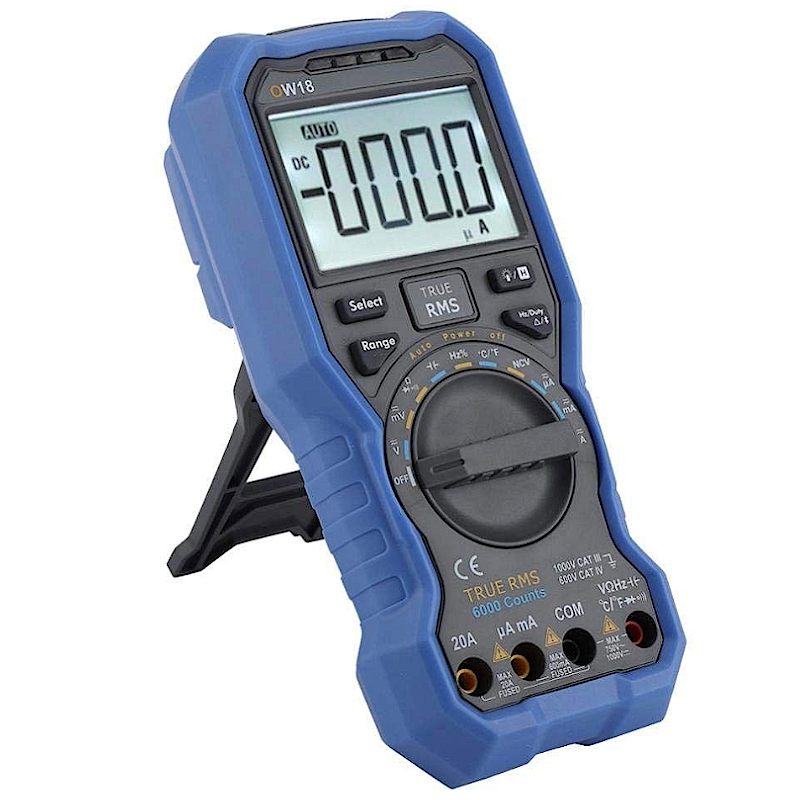

OW18B - Multímetro Bluetooth True RMS c/ Data-Logger e Termómetro

: FER02029
53,90 €
preço com IVA incluído

Multímetro Digital Portátil Bluetooth com 3 resolução de 5/6 bits NCV e 6000 Count, TRMS

Data Logger + Multímetro + Termómetro

Transmissão sem fio BLE (Bluetooth de baixo consumo) 4.0, mais estável

Suportado por Android, iOS e Windows através de App

Teste Díodos, Capacitâncias, Frequência e Temperatura

Indicador de Bateria fraca e Continuidade Audível

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

OWON Digital NCV Multimeter with Bluetooth is the branch of OWON's handheld multimeter series. With smaller size and faster reponse rate. Support NCV, True RMS, bluetooth communication. Can be used as Data Logger, Multimeter and Thermometer. Contact us for more detail information!BLE 4.0 wireless transmission, support muti-devices connection and single-display monitoring.One mobile end can connect with multiple multimeters, the test object is totally isolated with user to secure their life.Not only a multimeter, also a data logger and thermometer.Real time data are updated and recorded to end user device, no need to be in field. User can define the record time and sampling gap, data can be shown as chart and diagram, multi-devices connection supports data comparison. User and test object are totally isolated, which secure the life.Build-in offline record function.No need to put the end device in field, multimeter will save the data in its memory. Use the smartphone to load the data when connected.Large display with flashlight.Large display with high brightness flashlight. Can implement the test among darkness.NCV non-contact voltage sense.While getting the non-contact voltage sensor close to conductor, the instrument will beeps and flash with the frequency according to AC voltage strength.Support temperature test

Specifications

Digits & counts

3 5/6 & 6000

Voltage measurement

DC: 0.1 V ~ 1000 V ±(~0.5%+2dig)
AC: 1 mV ~ 750 V ±(~0.8%+3dig)

Current measurement

DC: 0.01 µA ~ 10 A ±(~0.8%+2dig)
AC: 0.01 mA ~ 10 A ±(~1.2%+3dig)

Precision resistance

0.1 Ω ~ 60 MΩ ±(~0.8%+2dig)

Precision capacity

0.01 nF ~ 60.00 mF ±(~2.5%+3dig)

Frequency measurement

0.001 Hz ~ 10 MHz ±(~0.8%+2dig)

Temperature measurement

-50 ~ 400 °C ±(~2.5%+3dig)

Auto-scaling

Yes

True-RMS

Yes

Datalogging

Yes

Input protection

Yes

Bluetooth

Yes

Safety certification

600 V (CAT IV), 1000 V (CAT III)

Power supply

9 V block battery

Screen size

69 x 52 mm

Dimensions

196 x 88.5 x 56 mm

Weight

320 gram



Accessories

The Owon OW18B multimeter comes with:

  1. Test leads

  2. Screwdriver

  3. K-type thermocouple

  4. Crocodile clips

  5. Manual (English)

  6. 9V battery
