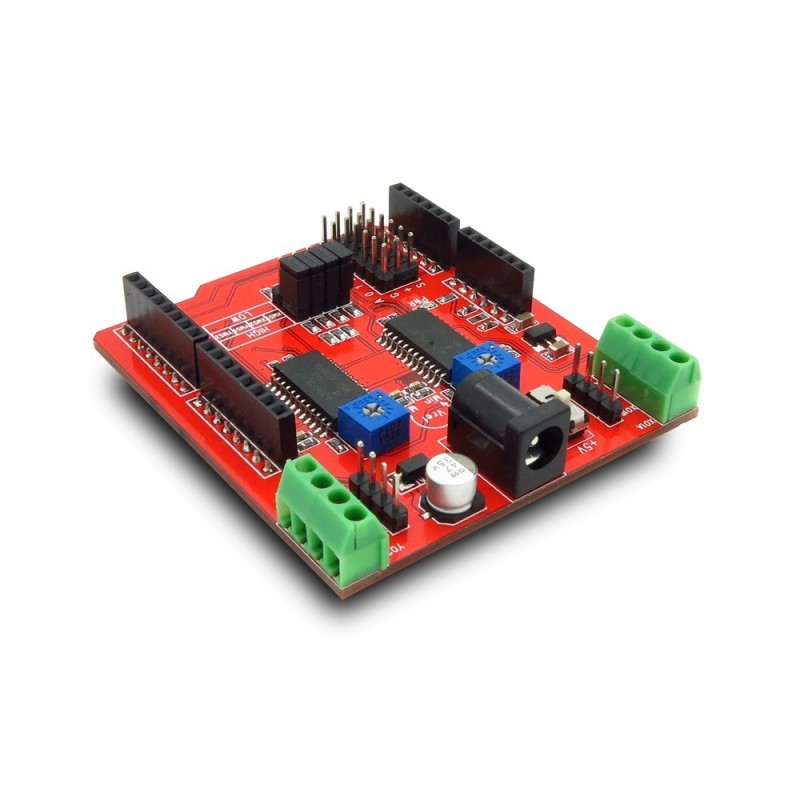

Shield 2 Motores de Passo p/ Arduino - ITEAD

: ARD03128
12,60 €

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Overview

Dual stepper motor driver shield can drive 2 stepper motors at the same time by Arduino. It can work with the power supply from 4.75V to 30V (starting from 23/07/2017, we use a new one which supports power supply from 4.75 to 15V ). High accuracy control, it can be supported by Arduino for CNC milling machine.

It uses the same stepper motor driver chip as EasyDriver, so you can use it as 2 EasyDriver modules on board. And there are all pins breakout as 3PIN electronic brick/ sensor brick interface.



Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.



Features

  • Dual step motor driver design for Cartesian coordinate system
  • ±750mA, 5-30V output rating
  • Automatic current-decay mode detection/selection
  • 3.0 to 5.5V logic supply voltage range
  • Mixed, fast and slow current-decay modes
  • Internal UVLO and thermal shutdown circuitry
  • Crossover-current protection



Technical support

For technical support, please open a ticket on Itead Support System.



Additional Information

Version 1.0
Compatible Mainboard
  • Leaf maple
  • Arduino Deumlanove/UNO
  • Arduino MEGA
  • ChipKit MAX32
  • ChipKit UNO32
  • FEZ Panda II
  • Freeduino
  • Iteadmaple
  • Iteaduino
  • Iteaduino ADK
  • Iteaduino BT
  • Iteaduino MEGA 2560
  • Simple Cortex
  • Seeeduino
  • Seeduino MEGA
Board Size 69mm x 61mm
Operation Level
  • Digital 3.3V
  • Digital 5V
Stackable No
Weight 50 g
ARD03128
