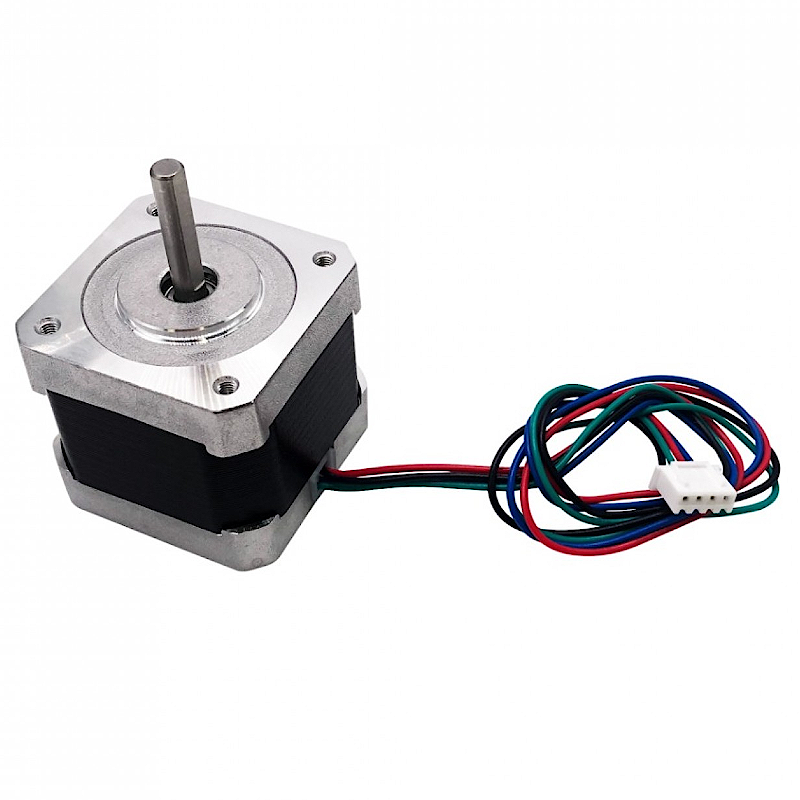

Motor de Passo Nema17 42HS40 0.41N.m 1.7A

General physical appearance

Main color

Black

Weight [g]

290

Dimension X [mm]

42

Dimension Y [mm]

42

Dimension Z [mm]

40

Mounting options

Screw thread

Thread size

M3

Form factor

NEMA17

Actuator

Actuator type

Stepper motor

Step angle [°]

1.8
(±5%)

Position feedback

No

Maximum holding torque [N.m]

0.41

Minimum motor voltage [V DC]

2.6

Maximum continuous RMS current per phase [A]

1.7

Phase resistance [Ω]

1.5
(±10%)

Phase inductance [mH]

2.3
(±20%)
(@1kHz)

Insulation class

B

Shaft

Shaft type

D-shape

Shaft diameter [mm]

5

Shaft length [mm]

22

Connectors

Motor connector(s)

JST-XH (compatible) female

Wire/cable

Wire/cable length [m]

0.3

Package contents

Package contents

1x Stepper motor
