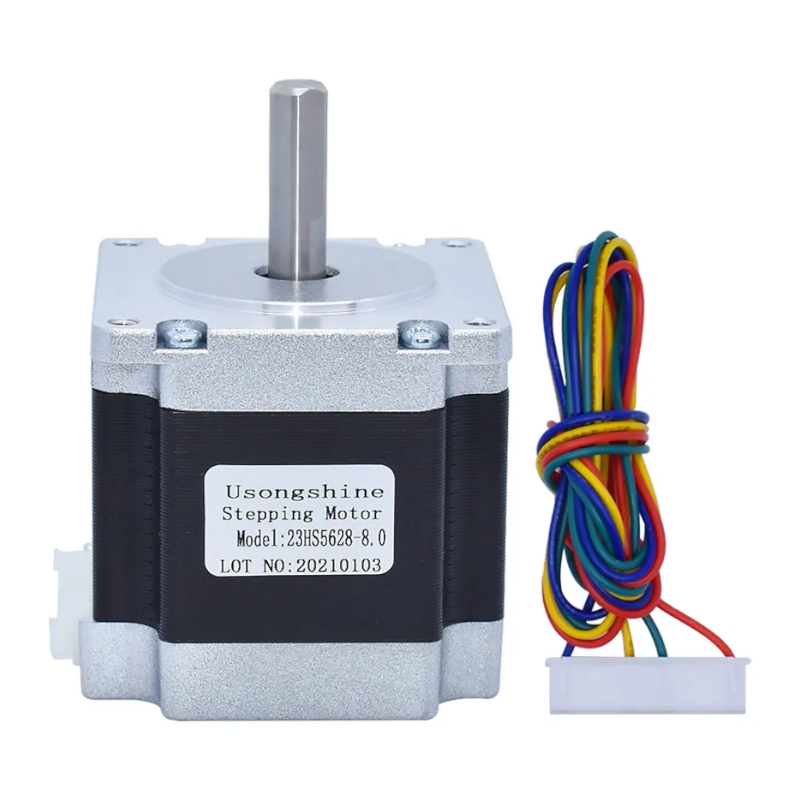

MOTOR DE PASSO 23HS5628-8.0 NEMA23 2FASES 2.8A/FASE 200PASSOS

: MOT04021
24,31 €

Motor de passo NEMA23 23HS5628, duas fases, 1.8 graus de resolução, Veio de 8mm e torque de 11.8 Kg/cm

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Application:

  1. CNC/3D Printers

  2. High Torque related projects (Not dependent on speed)

  3. Red(or Black): A+, Green(or Blue): A-, Yellow(or Green): B+ and Blue(or Red): B-.

  4. Requires a H-Bridge or L4988 type stepper stick to drive.



Features:

  1. Nema 23 Format

  2. Bi-Polar Stepper Motor

  3. 200 Steps or 1.8 degrees per Step

  4. Removable JST-XH connector (4 wires, but 6 pin connector)

  5. Loose wires for easy screw terminal mounting



Specifications:

  1. Step Angle: 1.8 degrees

  2. Steps per Revolution: 200

  3. 2-Phase

  4. Bipolar

  5. Voltage: 2.5VDC

  6. Current: 2.8Amps

  7. Phase Resistance: 0.9Ω

  8. Phase Inductance: 2.5mH

  9. Holding Torque: 11.8 Kg/cm / 165 OZ-In

  10. Moment of Inertia: 300 g.cm^2

  11. Shaft: 8mm
  12. Weight: 0.7kg



https://www.hta3d.com/image/catalog/componentes/Electr%C3%B3nica/Motores/23hs/Nema23.jpg

MOT04021
