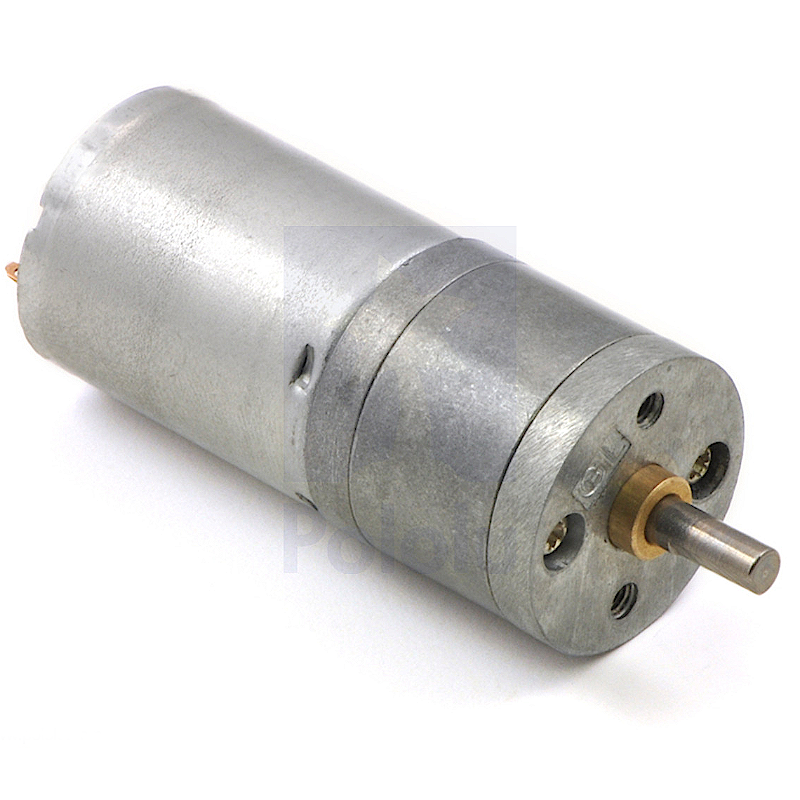

Motor Metal c/ Redutora 20.4:1 25Dx50L mm 12V 500rpm
Motor em metal com caixa redutora. 12V, 500rpm.
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
This gearmotor consists of a high-power, 12 V brushed DC motor combined with a 20.4:1 metal spur gearbox. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.
Key specifications:
voltage |
no-load performance |
stall extrapolation |
---|---|---|
12 V |
500 RPM, 250 mA |
7.4 kg⋅cm (100 oz⋅in), 5.0 A |
Overview
These cylindrical brushed DC gearmotors are available in a wide range of gear ratios and with five different motors (two power levels of 6 V motors and three power levels of 12 V motors). The gearmotors all have the same 25 mm diameter case and 4 mm diameter gearbox output shaft, so it is generally easy to swap one version for another if your design requirements change (though the length of the gearbox tends to increase with the gear ratio). Each version is also optionally available with an integrated 48 CPR quadrature encoder. See the 25D metal gearmotor datasheet (2MB pdf) for more information, including detailed performance graphs for each gearmotor version. You can also use our dynamically sortable 25D gearmotor comparison table to search for the version that offers the best combination of speed, torque, and current draw for your particular application. A more basic comparison table is available below.
Dimensions
Size: |
25D x 50L mm1 |
---|---|
Weight: |
85 g |
Shaft diameter: |
4 mm2 |
General specifications
Gear ratio: |
20.4:1 |
---|---|
No-load speed @ 12V: |
500 rpm |
No-load current @ 12V: |
0.25 A |
Stall current @ 12V: |
5.0 A |
Stall torque @ 12V: |
7.4 kg·cm |
Max output power @ 12V: |
9.4 W |
No-load speed @ 6V: |
250 rpm |
Stall current @ 6V: |
2.5 A |
Stall torque @ 6V: |
3.7 kg·cm |
Motor type: |
12V, 5.0A stall (HP 12V) |
Performance at maximum efficiency
Max efficiency @ 12V: |
46 % |
---|---|
Speed at max efficiency: |
420 rpm |
Torque at max efficiency: |
1.1 kg·cm |
Current at max efficiency: |
0.88 A |
Output power at max efficiency: |
4.8 W |
