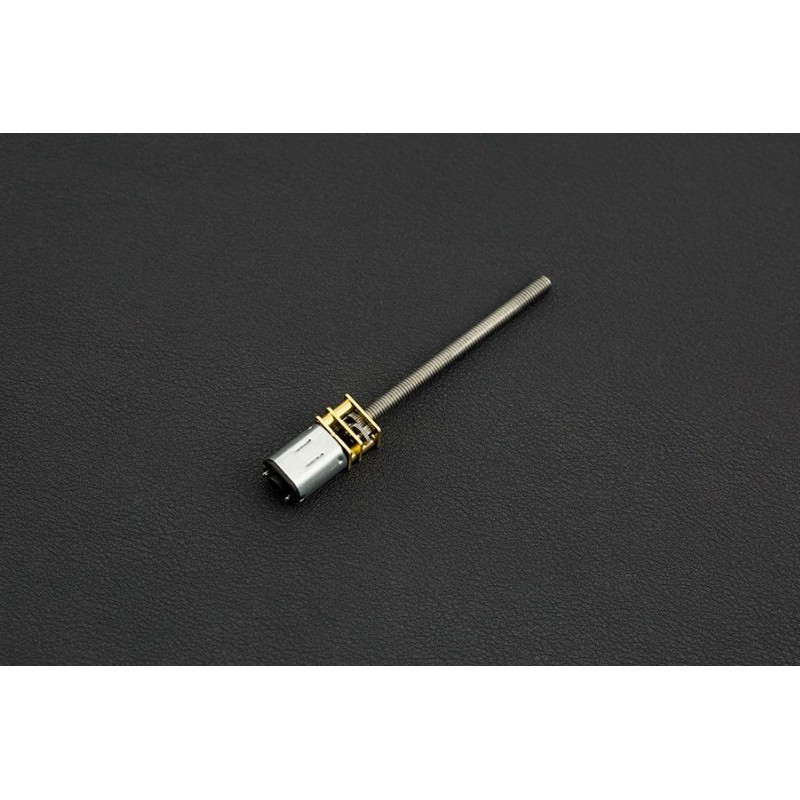

Micro Motor DC com veio roscado M4x55 (6V 150RPM)

:MOT02090
11,50 €
preço com IVA incluído
Este Micro Motor DC possui uma haste roscada M4x55mm integrada como eixo de saída, transformando-a em um atuador linear. Tensão nominal de 6V, a velocidade sem carga pode chegar a 150 RPM, equivalente a 1,75 mm / s.


Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

INTRODUCTION

This DC gearmotor has an integrated M4*55mm threaded rod as its output shaft, turn it into a linear actuator. 6V rated voltage, the no-load speed could arrive 150RPM, equivalent to 1.75mm/s. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6mm diameter, 0.35mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gear motor while enclosing the exposed gears.



Romeo BLE with Motors connection

SPECIFICATION

  • Reduction Ratio: 100:1
  • Rated voltage: 6.0 V
  • No-load speed: 150 RPM
  • Rated load speed: 120 RPM
  • Rated Torque: 0.3 kg.cm
  • Rated Current: 160 mA
  • Stall Torque: 2.4 kg.cm
  • Stall Current: 200 mA
  • Weight: 16 g

SHIPPING LIST

  • Micro Metal DC Geared Motor with Lead Screw (6V 150RPM M4*55) x1
MOT02090
