Módulo de Sensores para micro:bit (Monk Makes)

:PCO07085
15,50 €
preço com IVA incluído

Este módulo de sensores permite-te detetar niveis de som, temperatura e luz. Esta pequena placa possui pads para que possar usar cabos com pinças de crocodilo, facilitanto assim a ligação ao teu micro:bit.

Nota: Micro:bit e cabos pinça de crocodilo não incluídos.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

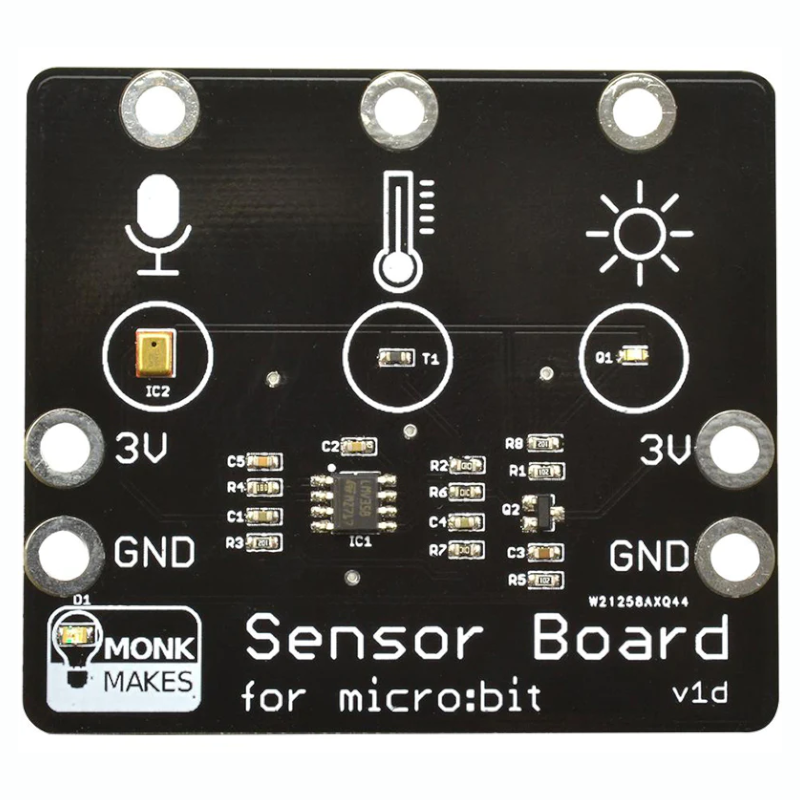

The MonkMakes Sensor Board allows you to detect sound levels, temperature and light levels. It features ring pad connectors for use with crocodile clips make it easy to connect to the board to a microbit.

Sound Level:
It senses sound level with a MEMs, which is a microphone on a chip that also features a pre-amplifier circuit. You can then use the plot bar graph block in the Microsoft MakeCode editor to display the result on the microbits LED matrix.

Temperature Level:
The temperature output from the board is a voltage that indicates the temperature. This is then measured using an analog input on the micro:bit. If you want your temperatures in Fahrenheit, then multiply the temperature in degrees C by 9, divide the result by 5 and then add 32.

Light Level:
The light sensor uses a photo-transistor to measure the light level and produces an output voltage that increases as the light level increases.

It has 3V and GND connectors on both sides of the board which make it possible to power another board, such as the Relay Board or Powered Speaker Board.



Features:

  1. 3V and GND connections can be made from either side and allow you to power a second board such as the MonkMakes Relay Board or MonkMakes Speaker.

  2. LED ‘power on’ indicator.

  3. Reverse polarity protection.

  4. All three sensors are analog and can be connected to pins P0, P1 and P2 using alligator clips.

  5. Detects sound level with a MEMs (microphone on a chip) and a pre-amplifier.

  6. Uses a thermistor to measure temperature.

  7. Light level detection with a photo-transistor (0 to 1023).

  8. All three sensors are analog and can be connected to pins P0, P1 and P2 using alligator clips.



Contents:

  1. 1 x MonkMakes Sensor Board for the BBC micro:bit.



Dimensions:

  1. Length: 63.2mm.

  2. Width: 55.7mm.

  3. Thickness: 1.6mm.



Requires:

  1. BBC micro:bit.

  2. Crocodile Leads.



Resources:

  1. Datasheet

  2. Instructions



PCO07085
