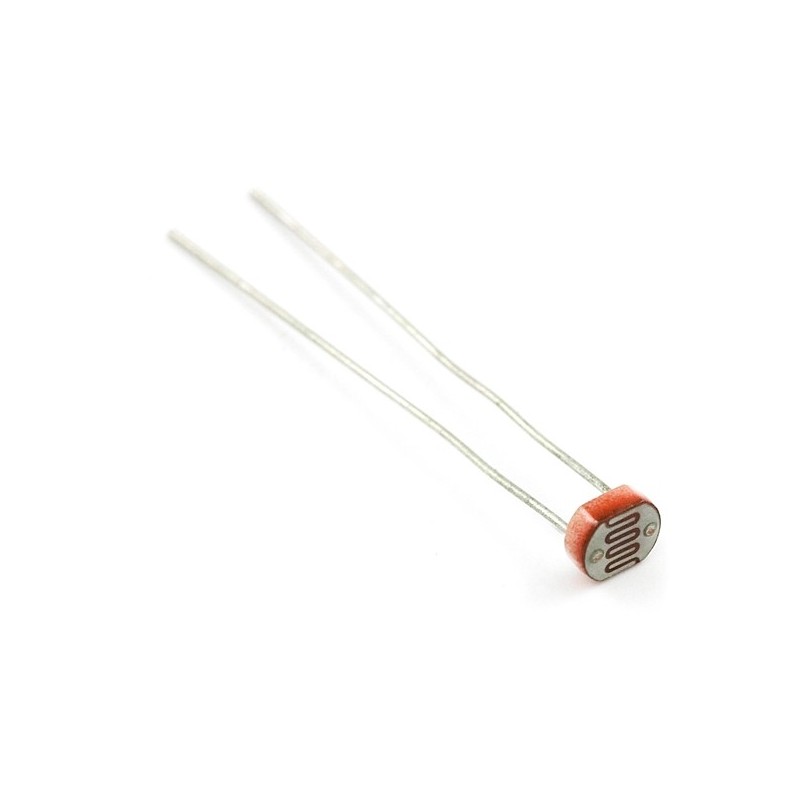

Foto-resistência LDR 5506 100mW Ø5mm - 2K~5K Ohm

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

Description:

This is a regular 5mm light sensor. A photocell changes (also called a photodetector, CdS or photoconductive cell) resistance depending on the amount of light it is exposed to. These little sensors make great ambient light triggers (when light in the room turns on, do something).

Features:

• Light resistance (10Lux) : ~2~5K Ohm
• Dark resistance : ~200k Ohm
• Max voltage : 150V
• Max power: 100mW
• Spectral Peak: 540nm
• Model: 5506

Dimensions:

• 5mm LDR (1.8 x 4.5 x 5mm)
• 4mm between pins
• 30mm lead length
