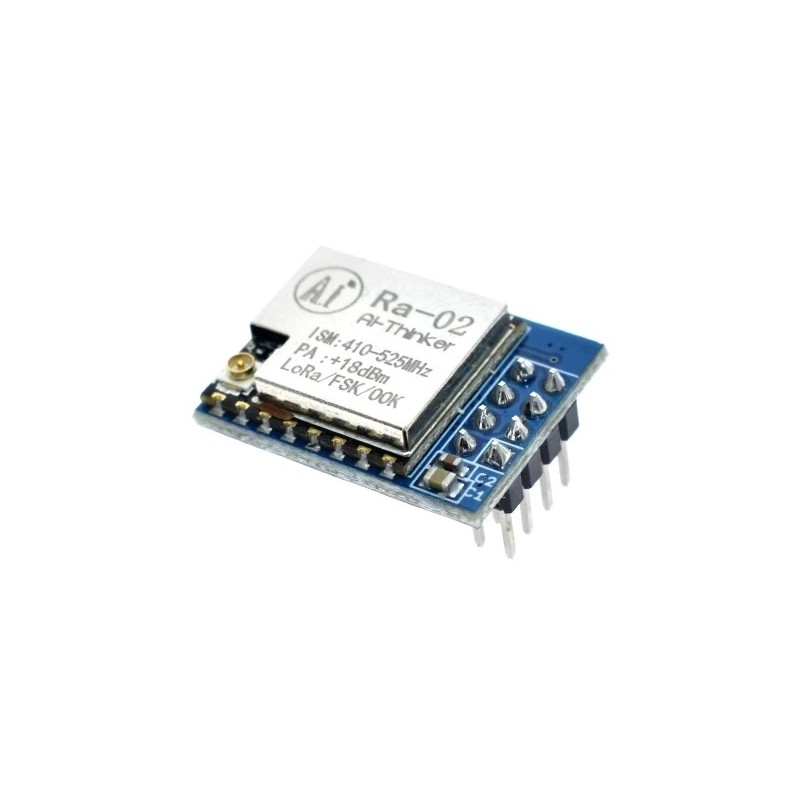

Módulo LoRa 433MHz 10Km SX1278 Ra-02

:COM05070
6,42 €

Módulo LoRa 433MHz SX1278 / Ra-02 com alcance até 10Km em linha de vista.

Nota: Não incluí antena com conector UFL

Quantidade
Últimos artigos em stock

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance up to 10Km. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.

The LoRa series module Ra-02 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa ™ modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa ™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.

Chip Diagram



Features

  • LoRa ™ Spread Spectrum modulation technology
  • Constant RF power output at + 20dBm-100mW voltage change
  • High sensitivity: down to -148dBm
  • Half-duplex SPI communication
  • Programmable bit rates up to 300kbps
  • Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
  • 127dB RSSI dynamic range
  • Automatic RF signal detection, CAD mode and very high speed AFC
  • Packet engine with CRC up to 256 bytes
  • Small footprint dual-row stamp-hole patch package
  • Shielded housing


Package Content:

  • 1x LoRa-02 Module SX1278 433MHz



Manual and techsupport:

Pinout

Dimensions - SX1278 module
