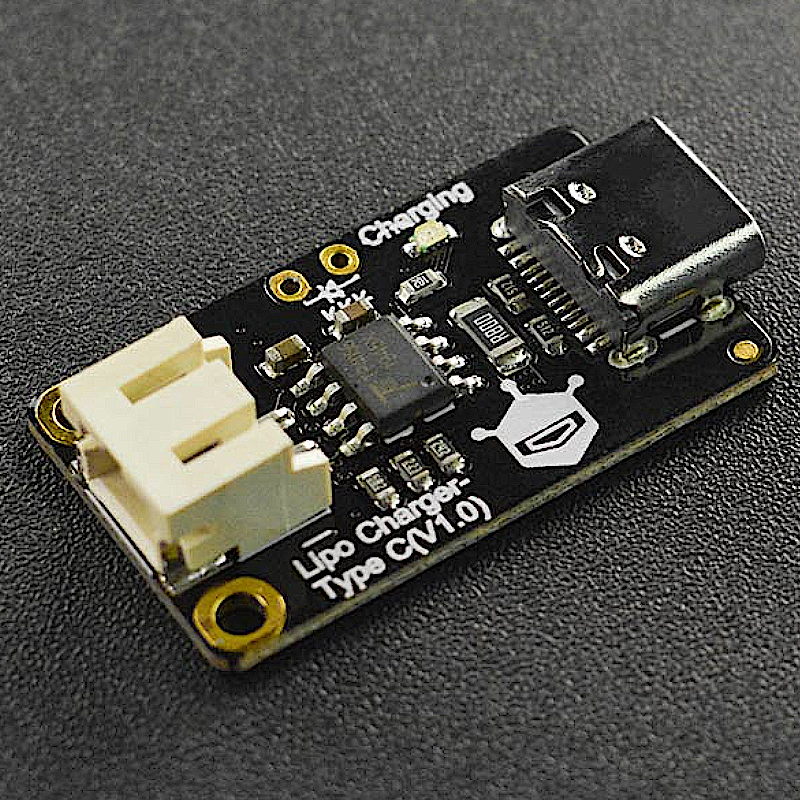

Carregador de baterias Li-Po entrada USB-C - DFRobot DFR0668

: BAT02059
4,96 €

Carregador para baterias LiPo com entrada USB-C de 3.7V com três velocidades de carregamento (50mA, 200mA e 500mA).

Se quiseres saber mais sobre este produto, consulta a sua Wiki Page.



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a Type-C Lipo charger designed for single-cell 3.7V lithium battery. The compact size makes it easy to integrate into your applications. The charger adopts TP4056X lithium battery charging IC, which guarantees you quick and safe charging, and also you can easily switch between 3 output currents (the default output current is 50mA) by selecting different bonding pads on the back. The thermal feedback inside the TP4056X can automatically adjust the charging current to limit the chip temperature under high power operation or high ambient temperature conditions.

Plug this charger into power source via its Type-C port, the LED on the charger will flash when no battery is not connected; keep on when charging and go off when the battery is fully charged. So, this LED will consume nothing of your battery. Besides, you can also connect an external indicator, which allows you to easily check the charging status when this module is integrated into your projects.

There are 3 charging stages provided: trickle charge, constant current charge, and constant voltage charge, which guarantee the safety and save the charging time.

Note: The low-current mode can charge large-capacity batteries, but the high-current gear cannot charge small-capacity batteries. If the charging current is too large, it may cause the battery explosion.

Battery Capacity

Recommended Charging Gear

100-400mAh

50mA

400-1000mAh

200mA

1000mAh above

500mA



Features

  1. Multiple current output modes(50/200/500mA)

  2. Mini size

  3. External indicator available

  4. Safe and quick charging



Specification

  1. Input Voltage: 5V

  2. Charging Current: 50mA, 200mA, 500mA

  3. Limited Charging Voltage: 4.2V±1%

  4. Working Temperature: -40℃~85℃

  5. Dimension: 16.5 x 28mm/0.65x1.10”



Documents



Shipping List

  1. Lipo Charger-Type C x1
BAT02059
