Carregador Baterias Lipo Adafruit Micro Lipo v1

: BAT02024
6,26 €

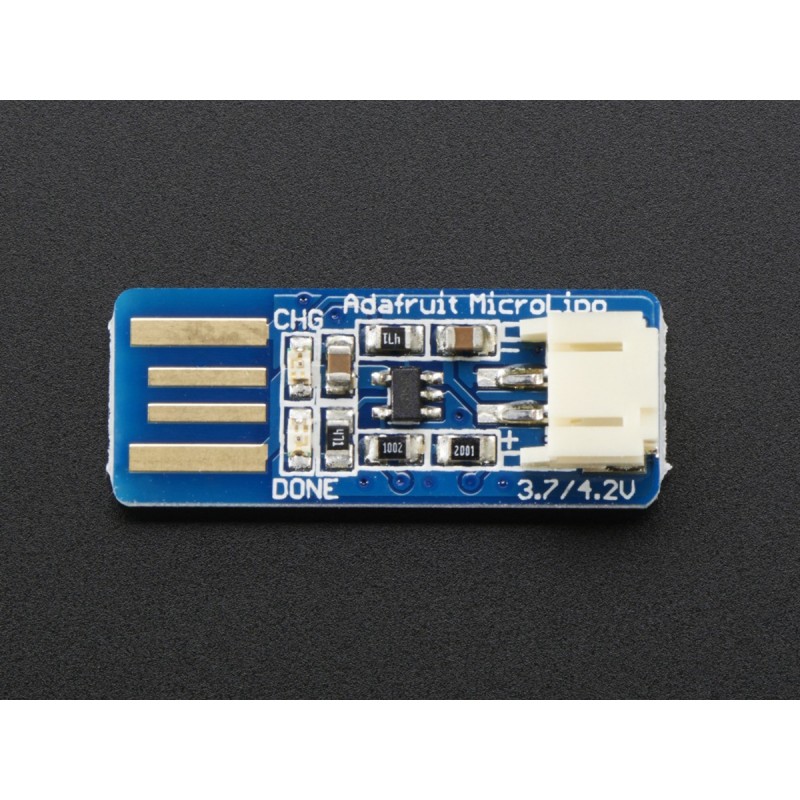

Ligue simplesmente a uma porta USB e a uma bateria recarregável de lítio a partir da ficha JST. Existem dois LEDs - um vermelho e um verde. Durante o carregamento, o LED vermelho está aceso. Quando a bateria está totalmente carregada e pronta para uso, o LED verde acende.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped-up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the back, for when you'll only be charging batteries with 500mAh size or larger.

For use with LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity or pinout.

  • Comes assembled and tested with a free bonus JST cable!
  • 5V input via PCB-style USB connector
  • For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
  • 100mA charge current, adjustable to 500mA by soldering a jumper closed
  • Free 2-pin JST cable included!

The MicroLipo charger can get hot during charging. Grab it by the sides and unplug then let cool before removing the battery - take care not to touch the components during charging!

Batteries not included.
