Emissor Laser Linha - 5mW 650nm Vermelho
  • Emissor Laser Linha - 5mW 650nm Vermelho
  • Emissor Laser Linha - 5mW 650nm Vermelho
  • Emissor Laser Linha - 5mW 650nm Vermelho

Emissor Laser Linha - 5mW 650nm Vermelho

: CEL03043
10,73 €

Você tem alguns tubarões frickin em seu covil, e você está pensando "seria ótimo se eu poderia anexar alguns lasers para eles" e então você vê esses módulos pequenos diodos de laser: o grande momento! Estes diodos laser encapsulados são de Classe IIIa 5mW, com um comprimento de onda vermelho 650nm. Este diodo laser particular tem uma lente acoplada para transformar o ponto em uma linha.

Quantidade
Últimos artigos em stock

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

  • DESCRIPTION

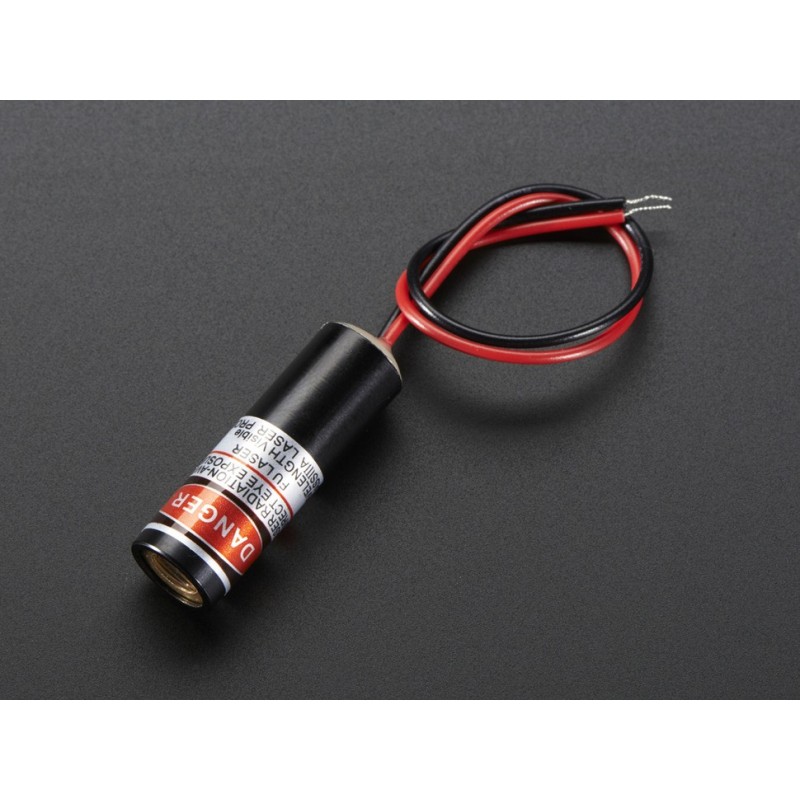

    You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project.

    This particular laser diode has a lens attached to turn the dot into a line. We think this would be particularly good for making a 3D scanner, but there are probably many other cool uses! Simply connect power to the red and black wires and you will be lasing in no time.

    The line beam spread is 120° - so from a distance of 5cm the line is 15cm long. The line fades out and doesn't have a sharp cut-off.

    Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page

  • TECHNICAL DETAILS

    • Weight: 11.85g
    • Diameter: 10.11mm
    • Length: 32.82mm
    • Wire length: 100mm
    • 650nm wavelength
    • 2.8 - 5.2V DC voltage input
    • 25mA max current draw
    • Operating temperature -10°C to 40°C;
CEL03043
