GrovePi+ Starter Kit for Raspberry Pi

: PCO01033
101,59 €
Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos

GrovePi+ are compatible with Pi 2, please check the details from Dexter blog.

GrovePi+ Starter Kit

Grove Starter Kit for Launchpad

What is GrovePi+ Start kit for Raspberry Pi

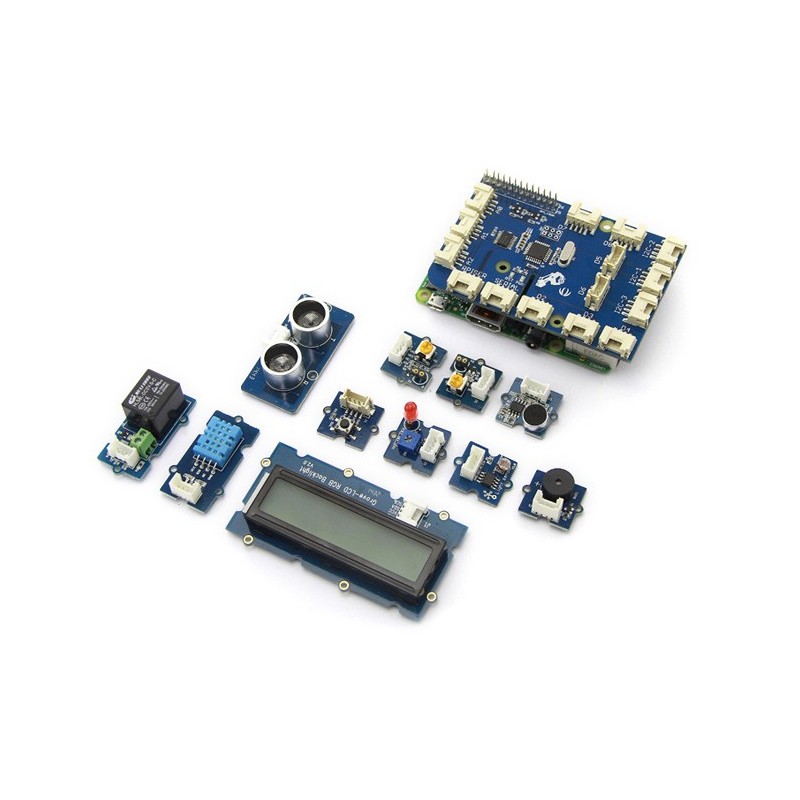

Carrying a GrovePi+ board together with 12 carefully selective Grove sensors with 10 pieces cables , this starter kit gets you up and running with the Raspberry Pi quickly. Just slip the GrovePi+ board over your Raspberry Pi and connect sensors to the board, you’re ready to start hardware playing and prototyping with the powerful platform.

About The GrovePi+, It is stacked on top of the Raspberry Pi without the need for any other connections. Communication between the two occurs over the I2C interface. All Grove modules connect to the universal Grove connectors on the GrovePi+ shield via the universal 4 pin connector cable.

About Grove modules, which work on analog and digital signals, connect directly to the ATMEGA328 microcontroller on the Grove Pi+. The microcontroller acts as an interpreter between the Raspberry Pi and the Grove sensors. It sends, receives, and executes commands sent by the RaspberryPi.

The GrovePi+ is compatible with Raspberry Pi A+,B,B+/2.

Please be notice: The Raspberry Pi board is not included.

What's include?


Grove pi+ × 1

Grove - sound Sensor × 1

Grove - Temperature&Humidity × 1

Grove - light sensor × 1

Grove -Relay × 1

Grove - Button × 1

Grove - UItrasonic Ranger × 1

Grove - Rotary Angle Sensor × 1

Grove-LCD RGB Backlight × 1

Grove - red led × 1

Grove Buzzer × 1

Grove blue led × 1

Grovepi+Guidebook × 1

Cables × 10

Grove green led × 1



Demos gallery



LED Blink



Grove Starter Kit for Launchpad



LED Fade

Grove Starter Kit for Launchpad



Button and Buzzer

Grove Starter Kit for Launchpad



Ultrasonic and Relay

Grove Starter Kit for Launchpad



Home Weather Display

Grove Starter Kit for Launchpad



Sensor Twitter Feed

Grove Starter Kit for Launchpad


Document and resoures
