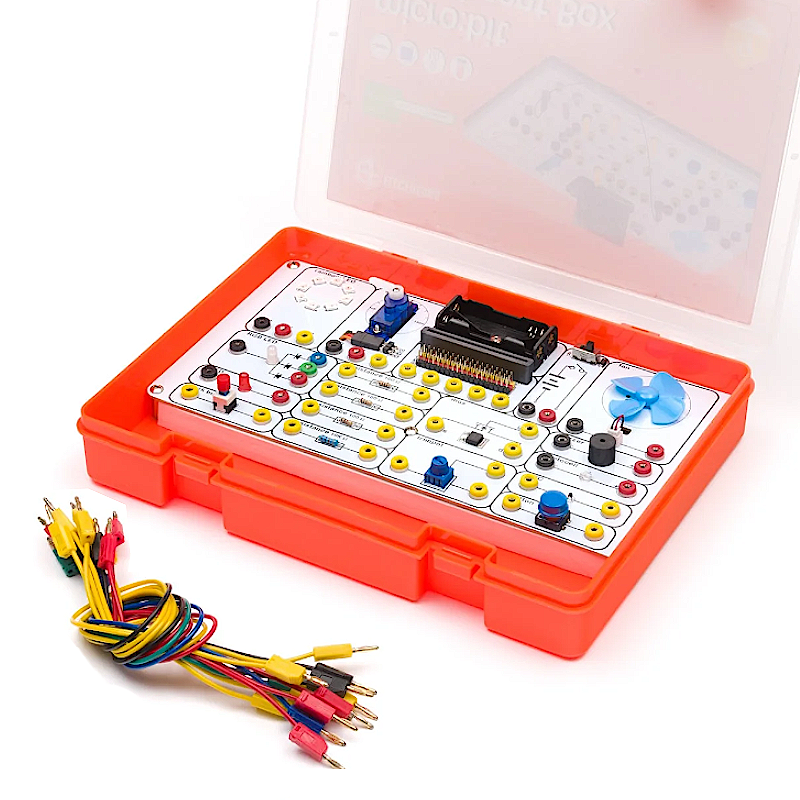

Caixa de Kit de Experiências para micro:bit (micro:bit não incluído) - ELECFREAKS EF08200

:PCO07095
49,90 €
preço com IVA incluído

Este kit da Elecfreaks é uma excelente maneira de aprender eletrónica. Para além de contar com componentes tradicionais neste tipo de Kits, como sensores de temperatura, servos, motores e etc., este kit conta também com outros componentes tais como MOSFETs, transístores, resistências de diferentes valores, etc.

Para programar poderás usar a Makecode, a linguagem de programação gráfica do Micro:bit. Quanto às ligações, tudo isto pode ser conectado usando apenas cabos banana, o que torna bastante simples a ligação entre componentes.

Se quiseres saber mais sobre este produto e teres acesso aos seus projetos, consulta a sua Wiki Page

Nota: Placa controladora BBC micro:bit não incluída.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

The Elecfreaks Experimental Box is a brand new teaching aid developed by ELECFREAKS. We included traditional components such as the temperature sensor, photocell, servo, motor and LEDs. But we also added electronic components such as the MOSFET transistor, different values of resistors, and a trimpot to combine circuit design with programming.

For this Experimental Box, you’ll use banana plug wires to connect different components. These wires are easy to insert and pull out yet still create stable connections. Meanwhile, using banana plugs lays a foundation for further circuit design.

Use makecode - micro:bit’s graphic programming language, to control these components or learn the basics of circuit design without the micro:bit.

Programming or designing circuits, the choice is up to you!



SPECIFICATION

  1. Name: ELECFREAKS Experiment microbit Box Kit

  2. SKU: EF08199/EF08200

  3. Coding language: makecode\python\C++

  4. Power supply: 2 x AA

  5. Connection: banana wire

  6. Size : 25X17.6X3.8cm

  7. weight: 885.5g



Components lists

Components

Numbers

DC motor with fan

1

Buzzer

1

Photocell

1

NTC

1

Button

1

Trimpot

1

Mos Tube

1

100Ω Resistor

3

10KΩ Resistor

1

Self-lock

1

Red LED

1

RGB LED

1

Rainbow LED

1

180° Servo

1

AAA Battery pack

1

Power Switch

1





../../_images/yg4f3xe.jpg








PCO07095
