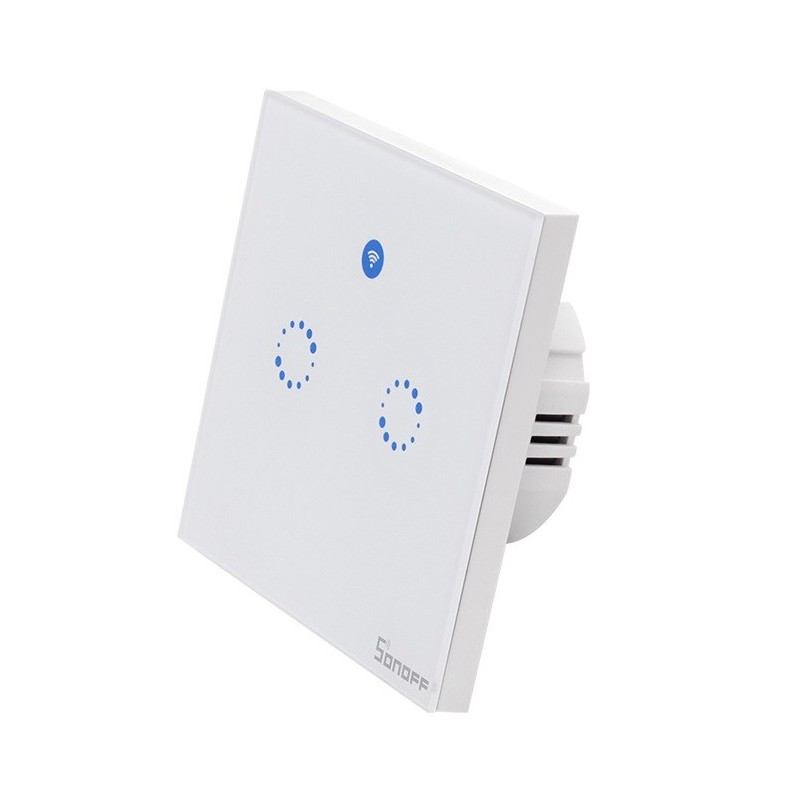

Sonoff T1 EU: Interruptor Duplo WIFI RF capacitivo para montagem em parede

Overview

The Sonoff T1 EU Smart Wall Touch Switch series are 1-2 gang touch/App/ RF control luxury smart light switch. The wireless wall switch can be added to iOS/Android App eWeLink via WiFi, allowing users to remotely turn on/off connected lights or appliances separately from anywhere at any time. After successfully learning codes with 433MHz RF Remote, the touch light switch can be turned on/off indoors. We provide sticky T433 86 type wall panel 433MHz wireless RF Remote control transmitter, which you can stick or screw to your original 86 box on the wall. This RF Remote can learn with other 433MHz RF devices, such as Slampher, Sonoff RF, Sonoff 4CH Pro. Upgrade your home to an elegant smart home, control anywhere, anytime!

With the App eWeLink, you can create scheduled/countdown timers to auto-turn on/off devices at the specified time. You can also create scenes to turn on/off multiple devices in your house with one tap. The smart wall switch works perfectly with Amazon Alexa, you can ask Alexa to turn it on/off.

Note: the T1 should be powered up by Live and Neutral wires.

Works With Amazon Alexa

Standard voice control commands phrases for Sonoff T1 (if you just say the device name, Alexa will turn on/off all the 4 gangs immediately):

Alexa, turn on {deviceName}
Alexa, turn off {deviceName}

Alexa, turn on {deviceName} {gangName}
Alexa, turn off {deviceName} {gangName}

Explanation: if the device name of your Sonoff T1 2 Gang switch is "My Switch", the gang name is "Gang 1", then you can control with "Alexa, turn on My Switch Gang 1".

For detailed tutorial, please click here.

Wiring Instructions:

Power input:

Use the 2 gang switch to connect with lights:

Use the 1 gang switch to connect with appliance with power lower than 500W:

Features

• Touch ON/OFF
• App Remote ON/OFF
• 433MHz RF Remote ON/OFF
• Scheduled/Countdown Timers
• Works with Amazon Echo, Echo Dot, Amazon Tap
• Works with Google Home, Google Nest
• Works with IFTTT

Specification

• Power Supply: 90V-250V AC
• Max. Current: 2A/250V/Gang
• Max. Power: 600W/gang
• Wireless Standard: 802.11 b/g/n & 433MHz RF
• Security Mechanism: WPA-PSK/WPA2-PSK
• Material: ABS V0 + Toughened Glass Panel
• Gang: 1/2
• Dimension: 86mm*86mm*32mm
• Weight: 140.0g
• Certification: CE, RoHS, FCC

• T433 86 Type RF Remote: 433MHz, 135.0g
