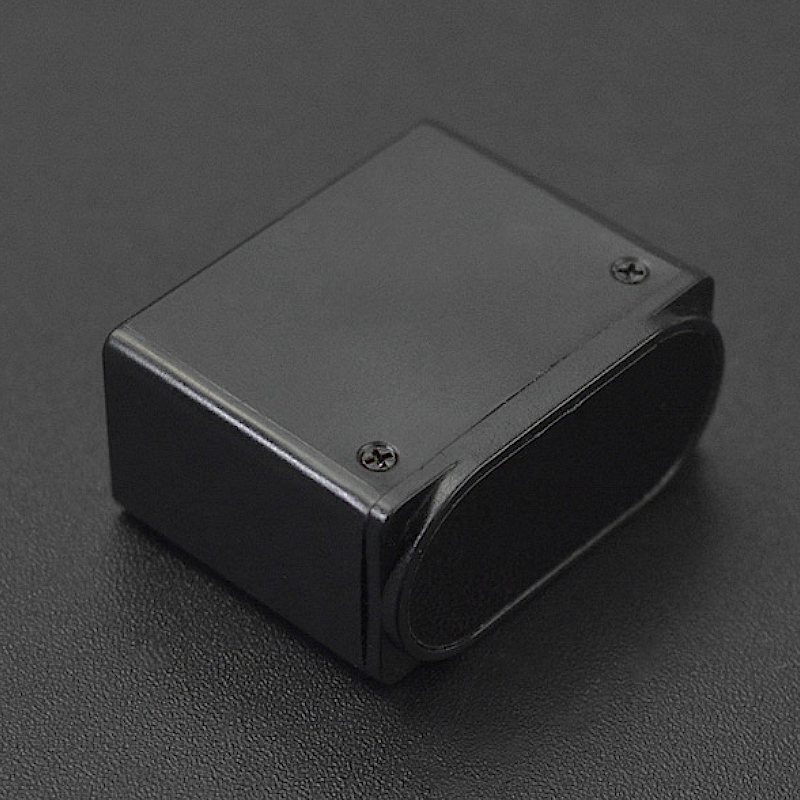

Mini LiDAR (TOF) Sensor de Distância Laser até 15m p/ exterior - DFRobot SEN0524

:SEN03065
44,90 €
preço com IVA incluído

Este TF Mini LiDAR é um medidor laser unidirecional baseado na tecnologia de tempo de vôo (ToF).
Este sensor consiste num alcance a laser de ponto único baseado em TOF para uso externo. Possui resistência de 100K LUX à luz ambiente forte, o que significa que não haverá problemas ao usá-lo em dias ensolarados. Para além disso este sensor possui uma gama de deteção entre os 5cm e os 15m.

Se quiseres saber mais sobre este produto, consulta aqui a sua Wiki Page.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This is a ToF-based single-point laser ranging sensor for outdoor use. It has 100K LUX resistance to strong ambient light, which means there will be no problems at all when using it on sunny days.

Outdoor Laser Ranging Module (15m)

With a detection range of 5cm~15m, the product features distance resolution 1mm, 50Hz data update frequency, 1~2° FOV, and supports UART, I2C, and I/O multiple communication modes(support active and query output data in UART mode).

Outdoor Laser Ranging Module (15m)

Small in size, there are standard screw holes reserved on the side and bottom of the module, which is convenient for installation in various places. It can be widely used in the fields of drone height setting, route planning, smart car competition and transportation, industrial automation, high-speed measurement, safety monitoring, etc.

Outdoor Laser Ranging Module (15m)



Features

  1. 100K LUX resistance to strong ambient light

  2. Supports UART, I2C, and I/O multiple communication modes

  3. Convenient for installation



Applications

  1. Drone height setting

  2. Route planning

  3. Smart car competition and transportation

  4. Industrial automation

  5. High-speed measurement and safety monitoring



Specification

  1. Measuring Range: 5cm~15m

  2. Measurement Resolution: 1mm

  3. Ranging Accuracy: [0. 05m, 2m]±2cm, std＜0. 5cm; (2m, 15m]±2%, std＜8cm

  4. Field of View (FOV): 1~2°

  5. Output Mode: UART, I2C, I/O (support active and query output in UART mode)

  6. Refresh Rate: 50Hz

  7. I2C Default Slave Address: 0x08

  8. Wavelength: 750~830nm

  9. Anti-Ambient Light: 100K Lux

  10. Power Supply Voltage: 3.7~5.2V, reverse connection protection

  11. Power Consumption: 610mW

  12. Working Temperature: -10~60℃

  13. Size: 22.7*28*13.6mm / 0.89*1.10*0.54 inch

  14. Weight: 7.7g



Documents



Shipping List

  1. Outdoor Laser Ranging Module(15m) x1

  2. GH1.25 4P Adapter Cable x1

  3. Screws x2
