Sensor de Gestos GY-9960-3.3 APDS-9960

:SEN03043
8,95 €
preço com IVA incluído

Sensor de Gestos RGB APDS-9960 permite a medição de luz e cor ambiente, detecção de proximidade e detecção de toque sem contacto. Com um simples movimento da sua mão será capaz com este sensor de controlar um computador, microcontrolador ou robô.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description

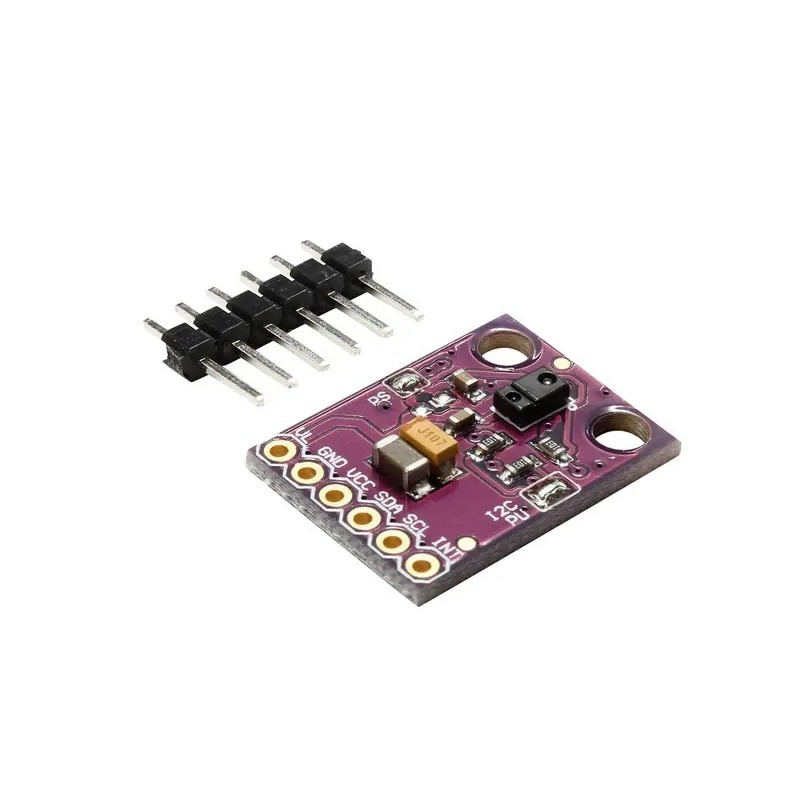

This is the  RGB and Gesture Sensor, a small breakout board with a built in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price.

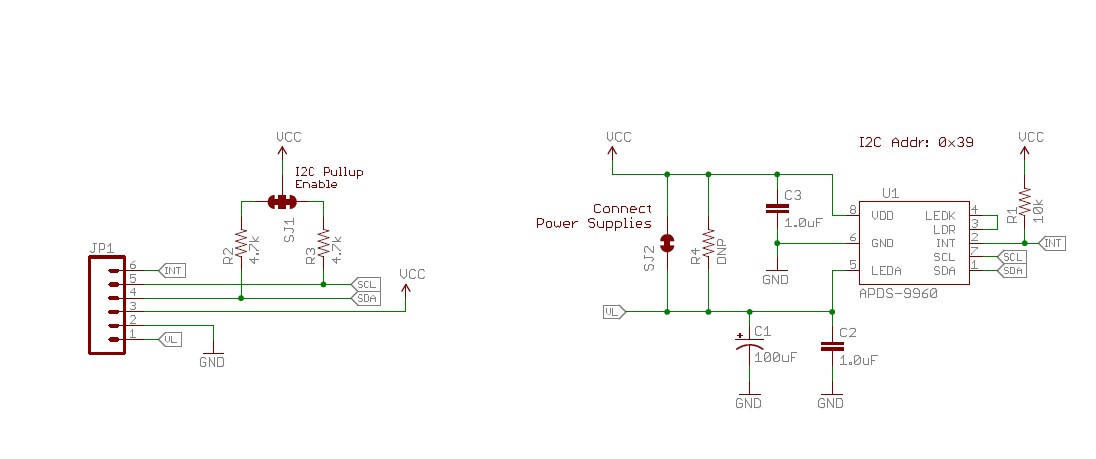

The APDS-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm)

Features

  • Application :RGB Infrared Gesture Sensor, Motion Direction Recognition Module
  • RGB and Gesture Sensor
  • APDS-9960 sensor
  • Specifications
  • Model: GY-APDS9960-3.3
  • chip: APDS-9960
  • Power supply: 3.3v
  • Communication: IIC communication protocol
  • Size: 20 mm * 15.3 mm





Documents:

SEN03043
