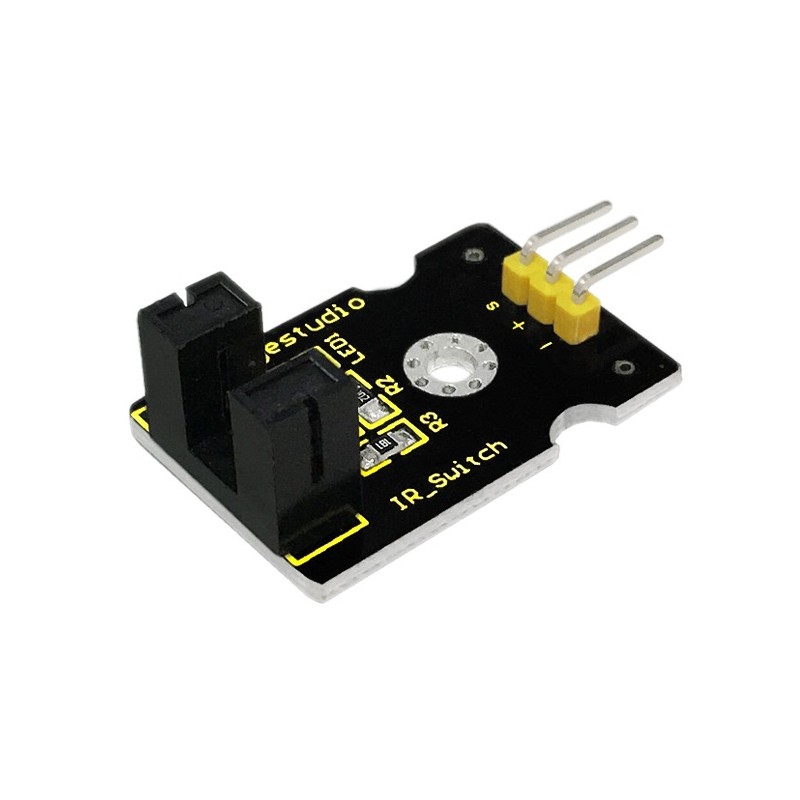

Sensor de Velocidade para Motores

:SEN03046
4,20 €
preço com IVA incluído

Este é um sensor de velocidade, o principal objetivo é verificar a taxa de rotação do motor.
É amplamente utilizado na detecção de velocidade do motor, contagem de pulsos, limite de posição, etc.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This sensor is composed of an infrared emitter on one upright and a shielded infrared detector on the other. By emitting a beam of infrared light from one upright to the other, the sensor can detect when an object passes between the uprights, breaking the beam. Used for many applications including optical limit switches, pellet dispensing, general object detection, etc. Gap width = 10mm







Specification

Supply Voltage: 3.3V to 5V

Interface: Digital


Example code

photo interrupter module

int Led = 13 ;// define LED Interface
int buttonpin = 3; // define the photo interrupter sensor interface
int val ;// define numeric variables val
void setup ()
{
  pinMode (Led, OUTPUT) ;// define LED as output interface
  pinMode (buttonpin, INPUT) ;// define the photo interrupter sensor output interface
}
void loop ()
{
  val = digitalRead (buttonpin) ;// digital interface will be assigned a value of 3 to read val
  if (val == HIGH) // When the light sensor detects a signal is interrupted, LED flashes
  {
    digitalWrite (Led, HIGH);
  }
  else
  {
    digitalWrite (Led, LOW);
  }

}



SEN03046
