Kit Garra Standard Kit A - Channel Mount
  • Kit Garra Standard Kit A - Channel Mount
  • Kit Garra Standard Kit A - Channel Mount

Kit Garra Standard Kit A - Channel Mount

:CME01007
14,70 €
preço com IVA incluído

Este Gripper Kit A é um kit simples para montar uma garra robótica. Projetado para ser usada com qualquer servo Hitec ou Futaba de tamanho standard. Para montar este kit necessita apenas de uma chave tipo Phillips.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Description:

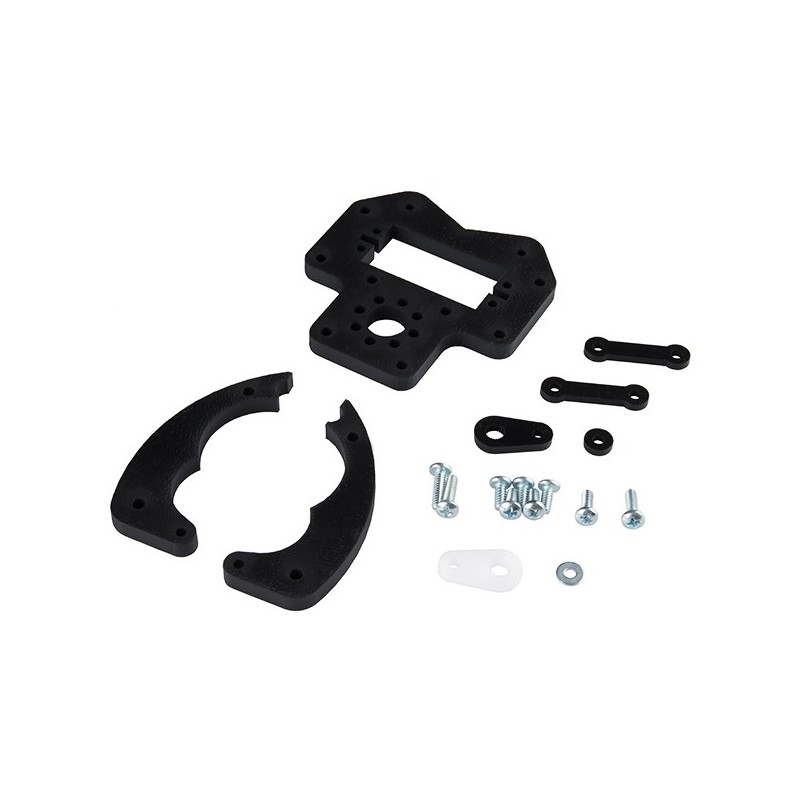

This is the Standard Gripper Kit A, a simple and durable robotics kit that is great for “getting a grip” on pretty much any robotics project! Designed for use with any standard size Hitec or Futaba servo, the gripper kit is easy to assemble and requires only a Phillips Head Screwdriver. This Standard Gripper is capable of opening an impressive 5" wide, has an overall body dimension of 5" long by 3" wide, and offers both 0.77" and 1.5" hub patterns for easy mounting on Actobotics components.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Note: This kit does NOT include a servo. Check the Recommended Products section below for great standard size servo options.

Features:

  • Opening Width - 5" (127mm)
  • Hub Pattern - 0.77" & 1.5"

Documents:

CME01007
