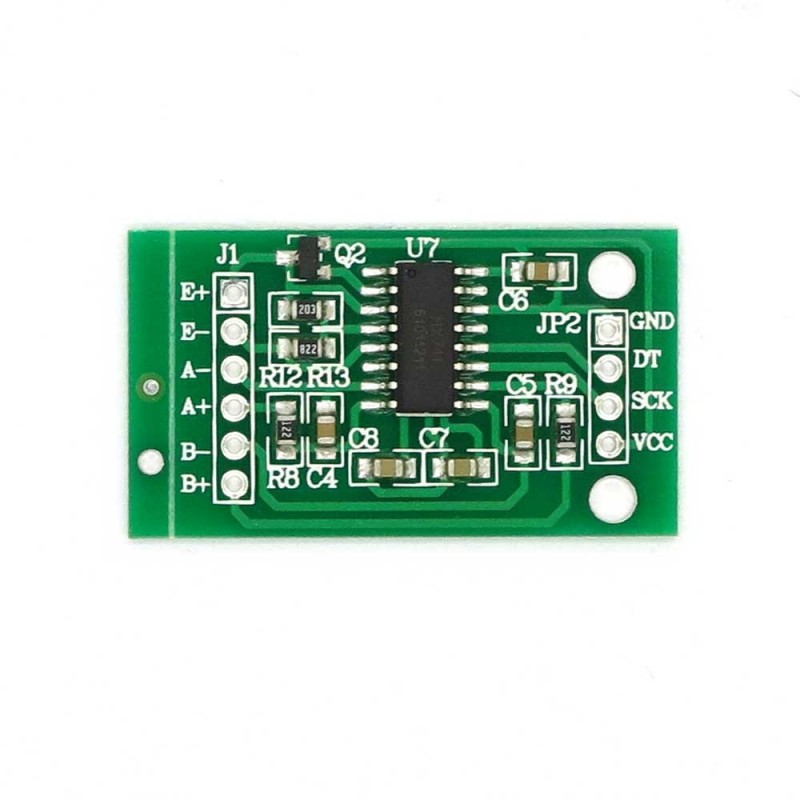

HX711 - Amplificador p/ células de carga/sensores de peso duplo canal

:SEN15011
3,50 €
preço com IVA incluído

O HX711 é um módulo de balança eletrônica, cujo princípio de funcionamento é baseado nas mudanças do valor da resistência, através do circuito de conversão digital. O módulo comunica com o computador por meio do TTL RS232.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

HX711 is an electronic scale module, whose working principle is to convert the measured changes in resistance value changes, through the conversion circuit into electrical output. The module communicates with the host computer through TTL 232.

Advantages

Simple structure, easy to use, stable and reliable performance, high sensitivity and measurement speed and so on.

Application

Widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields, used to measure force, pressure, displacement, strain, torque, acceleration.

Specification

  • Differential input voltage: ±40mV(Full-scale differential input voltage is ± 40mV)
  • Data accuracy: 24 bit (24 bit A / D converter chip.)
  • Refresh frequency: 80 Hz
  • Operating Voltage : 5V DC
  • Operating current : <10 mA
  • Size:38mm*21mm*10mm

Additional Information

Weight 20 g
SEN15011
