• ETH008

ETH008-B - MODULO 8X16A RELÉS ETHERNET

:MRE01000
55,85 €

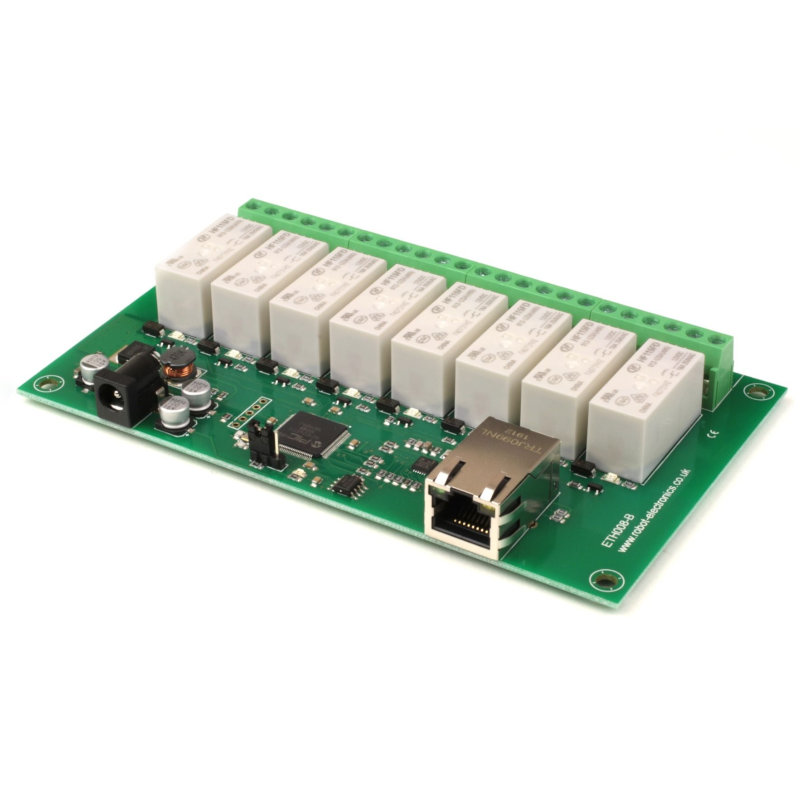

Módulo de 8 relés controlados por Ethernet usando comandos TCP/IP.

Quantidade

Controlled over Ethernet using simple TCP/IP commands.

Relays - 8
Power - 12V DC adaptor, supplied separately.
Configuration & Test interface - HTTP (webpage).
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.
Ethernet connection - 100mb full duplex

The ETH008-B is the upgraded successor to the ETH008, we have added MQTT with optional TLS encryption. Hostname is now configurable and there is full backward compatibility to the ETH008.

Full ETH008-B Documentation

MRE01000
