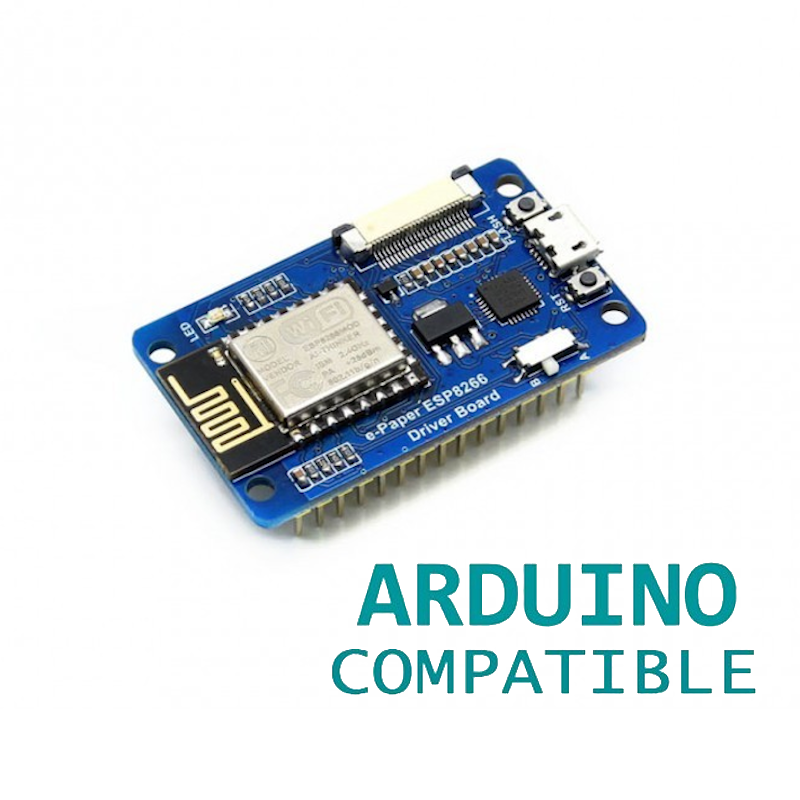

Controlador WiFi ESP8266 para Displays e-Paper - WS

:PCO05056
10,49 €

Esta é uma placa universal para painéis raw e-Paper, graças à conexão Wi-Fi, permitide exibir imagens do PC/smartphone via Wi-Fi.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Note: e-Paper panels in the photos are NOT included.

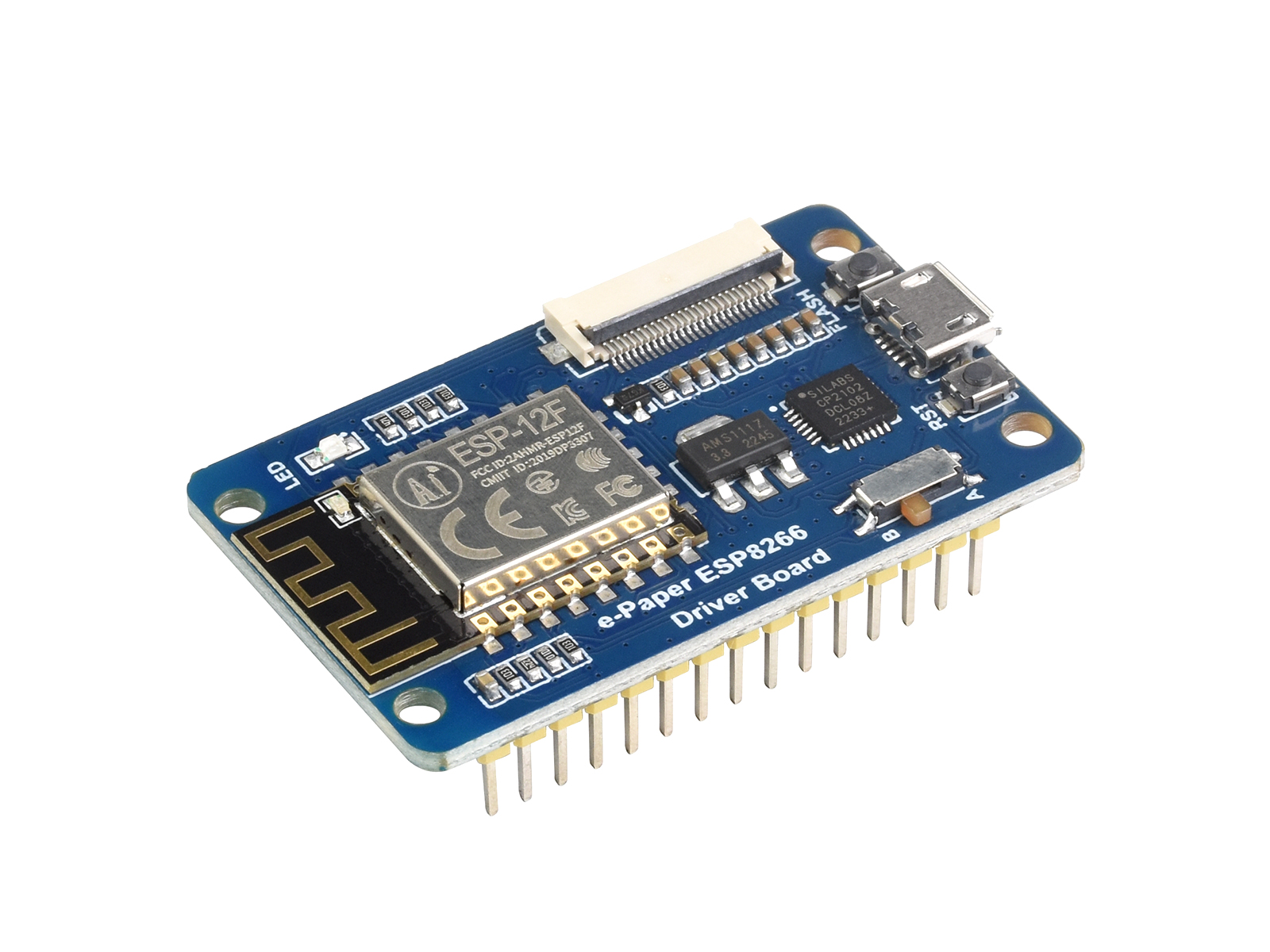

Overview

This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display image from PC/smart phone via WiFi conveniently.

Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.

Features

  • Onboard ESP8266, supports Arduino development
  • Provides HTML host code
    • Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
    • Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
    • Easy to be integrated into wireless applications
  • Comes with e-Paper driver (open source)
  • Comes with development resources and manual

Specifications

  • WiFi protocol: 802.11b/g/n
  • Interface: 3-wire SPI, 4-wire SPI (default)
  • Operating voltage: 5V
  • Operating current: 50mA ~ 100mA
  • Outline dimension: 29.57mm x 48.26mm
  • Mounting holes size: 2.9mm

Dimensions

e-Paper ESP8266 Driver Board dimensions

Development Resources

Wiki : www.waveshare.com/wiki/e-Paper_ESP8266_Driver_Board



Weight: 0.01 kg

  1. e-Paper ESP8266 Driver Board x1
  2. e-Paper Adapter x1
  3. 24PIN FFC x1
