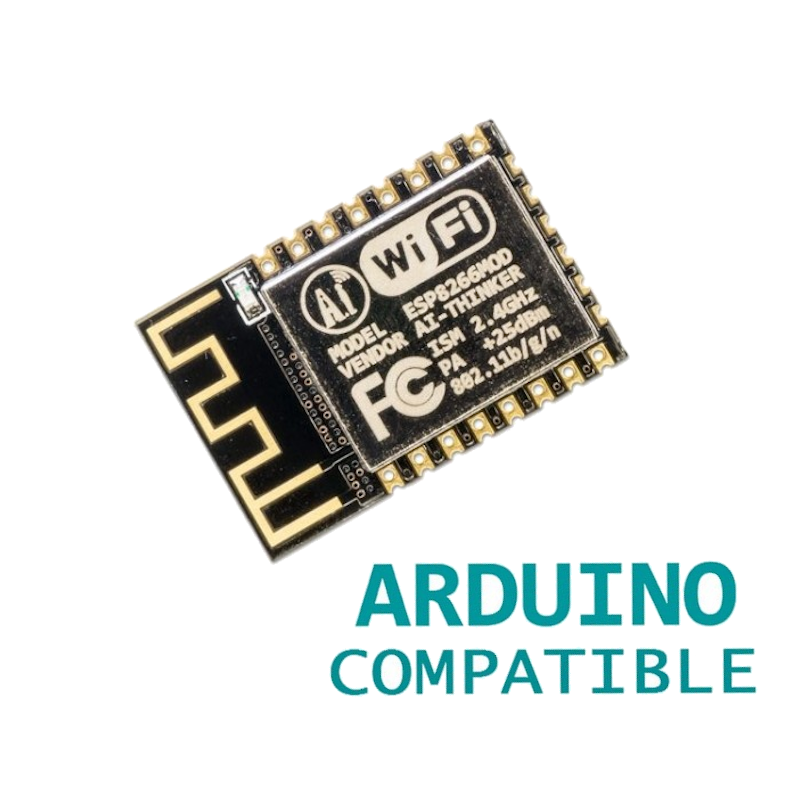

ESP-12F: ESP8266 Remote Serial Port WIFI Transceiver Wireless Module AP+STA

4,07 €

ESP8266 é um chip altamente integrado projetado para as necessidades de um novo mundo conectado.



Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.


ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.



  • Standards Certification: FCC / CE / TELEC
  • Wireless standards: 802.11 b / g / n
  • Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
  • Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
  • Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)
  • Working Current: Average: 80mA
  • Operating temperature: -40 ° ~ 125 °
  • Storage temperature: Nomal temperature


Technical support

For technical support, please open a ticket on Itead Support System. Or you can learn more in ESP8266 community forum.


Additional Information

Discontinued No
Link Wiki No
EWeLink Support N/A
Module Type No
Weight 2 g
Model IM151228001
Board Size 2.5CM X 1.5CM X 0.5CM
Version esp-12f
Operation Level Digital 3.3V
