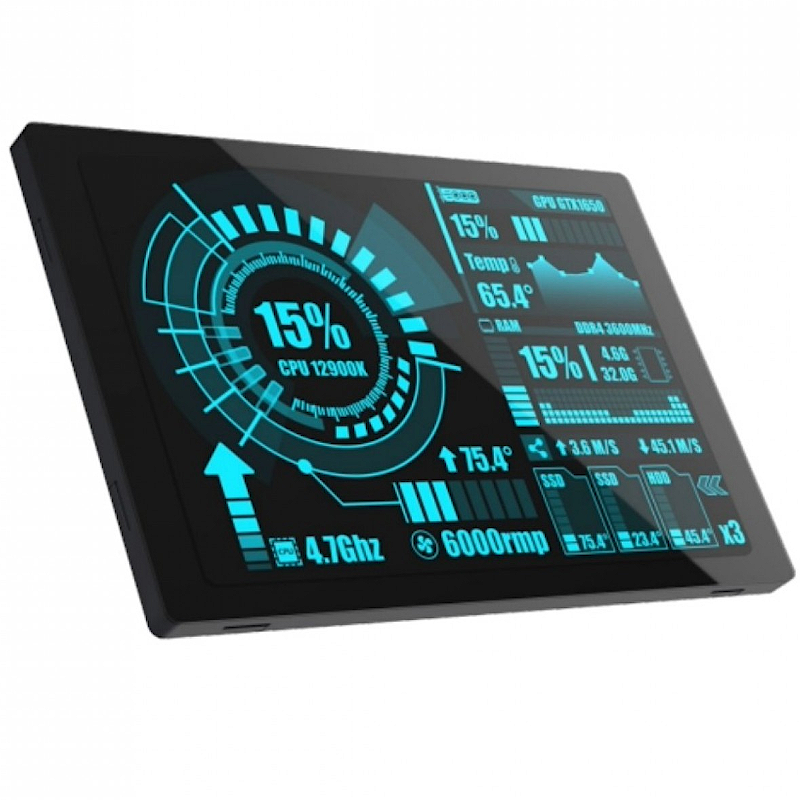

This board from Smart Panlee is the successor to the WT32-SC01. It is a powerful and versatile development board based on the ESP32-S3 chip. It features a 3.5-inch LCD display, a capacitive touch panel, and a number of GPIO pins, making it ideal for creating a wide variety of embedded applications.
The module can be programmed via the Arduino IDE and micropython (amongst others). In addition, you can easily design interfaces via this tool: 8ms (at the top right you can switch to English, creating an account is required).
The tool generates C code based on the LVGL library with a graphical interface, which can be used in, for example, Arduino IDE projects.
Datasheet:
-
PCO05195_Datasheet
Specifications
| General |
| Brand |
Smart Panlee |
| Manufacturer model/SKU |
ZX3D50CE08S (SC01 Plus 3.5) |
| Model revision |
V16 |
| Features |
Display
Touchscreen
Audio amplifier
SD-card adapter
Microcontroller (MCU) |
| General physical appearance |
| Main color |
Black |
| Weight [g] |
53 |
| Dimension X [mm] |
92 |
| Dimension Y [mm] |
60 |
| Dimension Z [mm] |
11 |
| Mounting options |
Mounting hole(s) |
| Diameter mounting hole(s) [mm] |
2.3 |
| Form factor |
Module (general) |
| General electrical properties |
| Minimum supply voltage [V DC] |
4.7 |
| Maximum supply voltage [V DC] |
5.5 |
| Minimum IO-pin input voltage [V] |
3.3 |
| Maximum IO-pin input voltage [V] |
3.3 |
| IO-pin output voltage [V] |
3.3 |
| Maximum IO-pin source current [mA] |
40 |
| Maximum IO-pin sink current [mA] |
28 |
| MCU |
| Manufacturer |
Espressif |
| Chip series |
ESP32-S3 |
| Maximum clock frequency [MHz] |
240 |
| Number of cores |
2 |
| Internal memory |
| SRAM [KB] |
512 |
| PSRAM [MB] |
2 |
| Flash memory [MB] |
16 |
| EEPROM type |
Emulated |
| Communication |
| Hardware interface(s) |
ADC
I2C
I2S
PWM
SPI
GPIO
UART
RS485
USB CDC
Native USB |
| Number of IO-pins |
8 |
| Maximum available hardware PWM channels |
8 |
| Maximum available analog input pins (ADC) |
5 |
| Maximum available analog output pins (DAC) |
0 |
| Maximum available hardware UART interfaces |
3 |
| Maximum available hardware I2C interfaces |
2 |
| Maximum available hardware SPI interfaces |
2 |
| USB to serial converter |
None |
| RS485 chip |
SP3485 |
| Number of RS485 channels |
1 |
| Supported SD card size |
Micro SD |
| Wireless communication |
| Interface(s) |
Wi-Fi
Bluetooth |
| Wi-Fi chip/SoC |
ESP32-S3 |
| Wi-Fi frequency [GHz] |
2.4 |
| Bluetooth chip/SoC |
ESP32-S3 |
| Bluetooth version |
5.0 |
| Supported Bluetooth standard(s) |
LE |
| Display |
| Type |
IPS |
| Driver |
ST7796U |
| Screen diagonal [inch] |
3.5 |
| Number of pixels long side |
480 |
| Number of pixels short side |
320 |
| Display shape |
Rectangular |
| Pixel colors |
RGB |
| Touchscreen |
| Touchscreen controller |
FT6336U |
| Touch type |
Capacitive |
| Multi-touch support |
No |
| Audio amplifier |
| Number of (normal) channels |
1 |
| Maximum power per (normal) channel [W] |
1.0
(@4Ω) |
| Minimum speaker impedance per (normal) channel [Ω] |
4 |
| Maximum speaker impedance per (normal) channel [Ω] |
4 |
| Connectors |
| Power supply connector(s) |
USB-C female
Molex Picoblade (compatible) male |
| IO-connector(s) |
USB-C female
Molex Picoblade (compatible) male |
| Speaker connector(s) |
Molex Picoblade (compatible) male |
| Wi-Fi/Bluetooth antenna connector |
Built-in antenna |
| Package contents |
| Package contents |
1x SC01 Plus
1x USB-A to USB-C cable
1x Molex PicoBlade (compatible) cable female 7p
1x Molex PicoBlade (compatible) cable female 4p |
