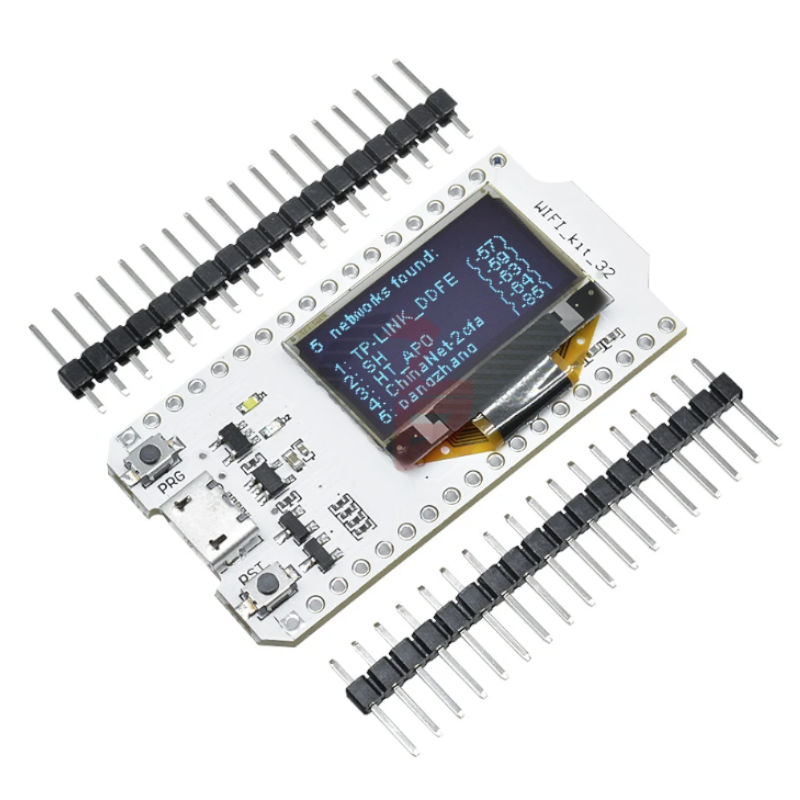

ESP32 WIFI Kit 32 com display OLED 128x64 - DIY MORE

: PCO05058
19,43 €
16,18 € Poupe 3,25 €

Compativel com o Arduino IDE, pode ser também programado noutras liguagens como Python, C, C++ e outras.

O Display OLED 128x64pixeis é muito util para fazer debug ou apresentar valores de sensores e informação que necessite visualizar. Para além disso conta com o chip CP2102 e 32mb de memória flash.

Tem ligação para uma bateria de litio 3.7Vdc que aliado ao seu baixo consumo permite desenvolver facilmente aplicações móveis.

Nota: Incluí headers mas não estão soldados na placa

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Supplier product Page:

https://www.diymore.cc/products/diymore-wifi-kit-32-esp32-wifi-wireless-with-0-96-inch-oled-display-cp2102-development-board-for-arduino-nodemcu

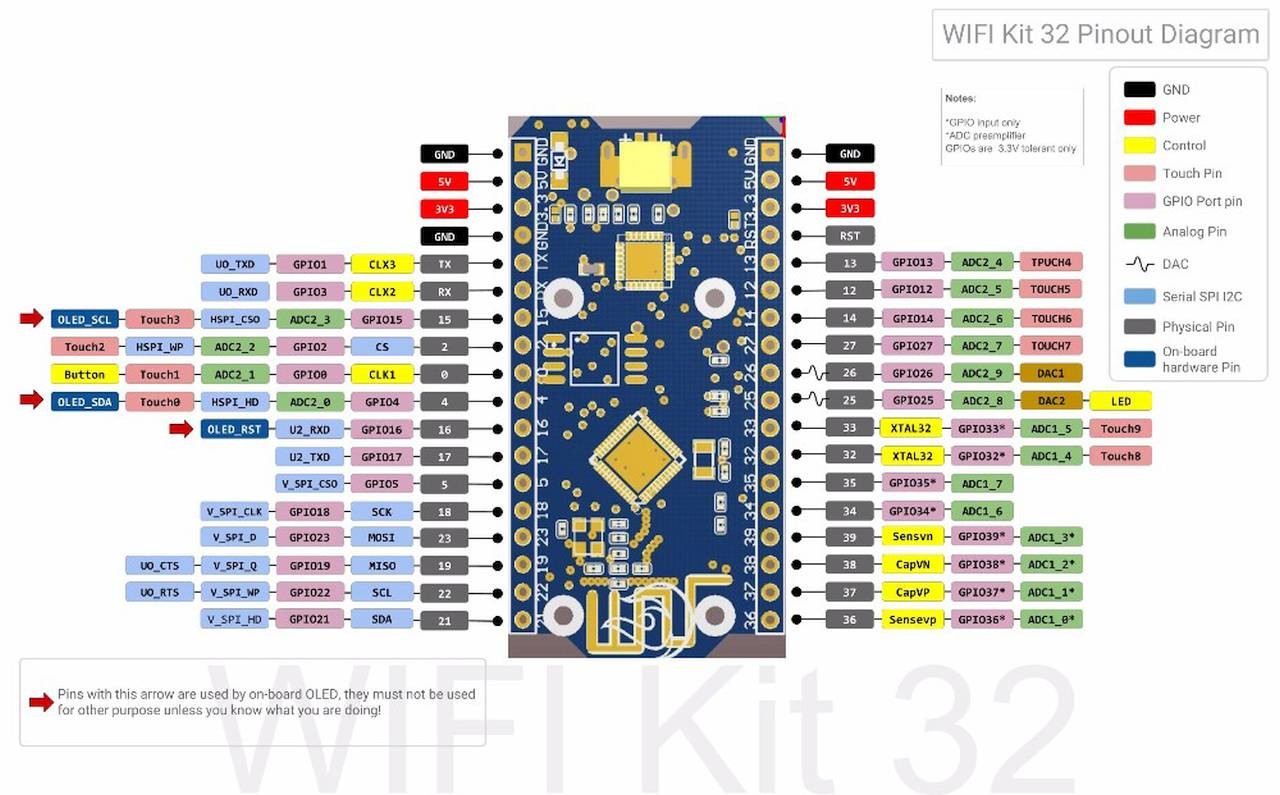

Pinout




  • Main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver
  • Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display,CP2102 USB to serial chip
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes
  • UDP continues to throughput by 135 Mbps
  • Operating voltage: 3.3V to 7V

Description:

WIFI Kit 32 series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver,baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps

Package Including:
1 * ESP32 development board with OLED
2 * Pin headers (not soldered)
