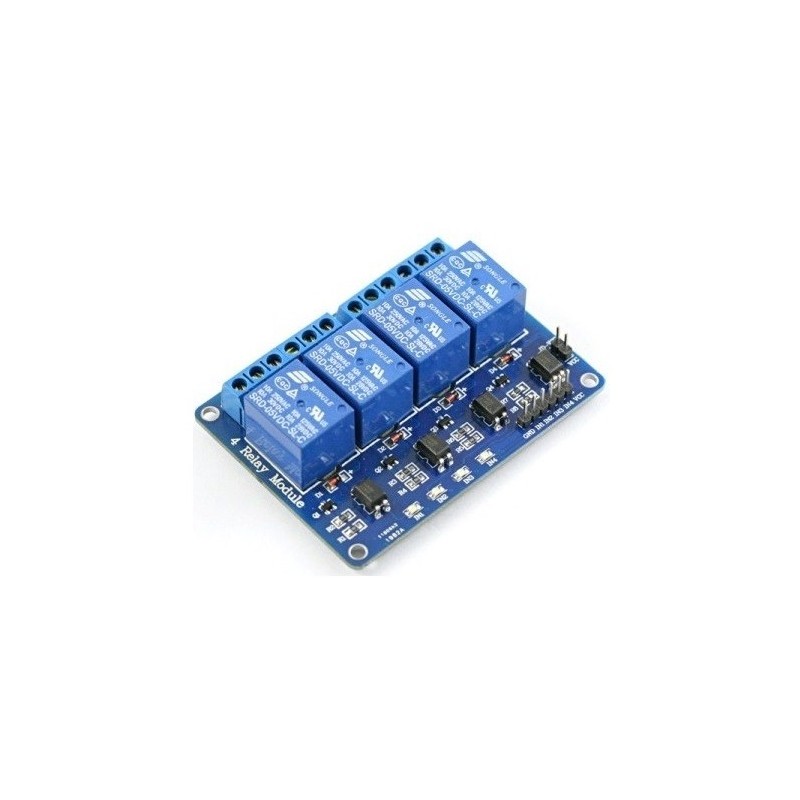

Módulo 4 Relés 5V opto-isolados

:MRE03020
7,75 €
preço com IVA incluído

Este módulo com 4 relés de 5V isolados opticamente, também é compatível com a Raspberry Pi 3.3V (ver ligações na imagem em baixo).

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

More info

This is a 5V 4-Channel Relay interface module, for controlling various appliances, and other equipments with large current. It can be controlled directly by microcontroller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430) TTL logic.

Description:

  • 5V 4-Channel Relay interface board, and each one needs 15-20mA driver current.
  • Optical isolation on each channel.
  • Standard interface that can be controlled directly by microcontroller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430) TTL logic.
  • Equipped with high-current relay: AC240V 10A / DC28V 10A.
  • Indication LEDs for relay output status.
  • Equipped with screw holes for easy installation.

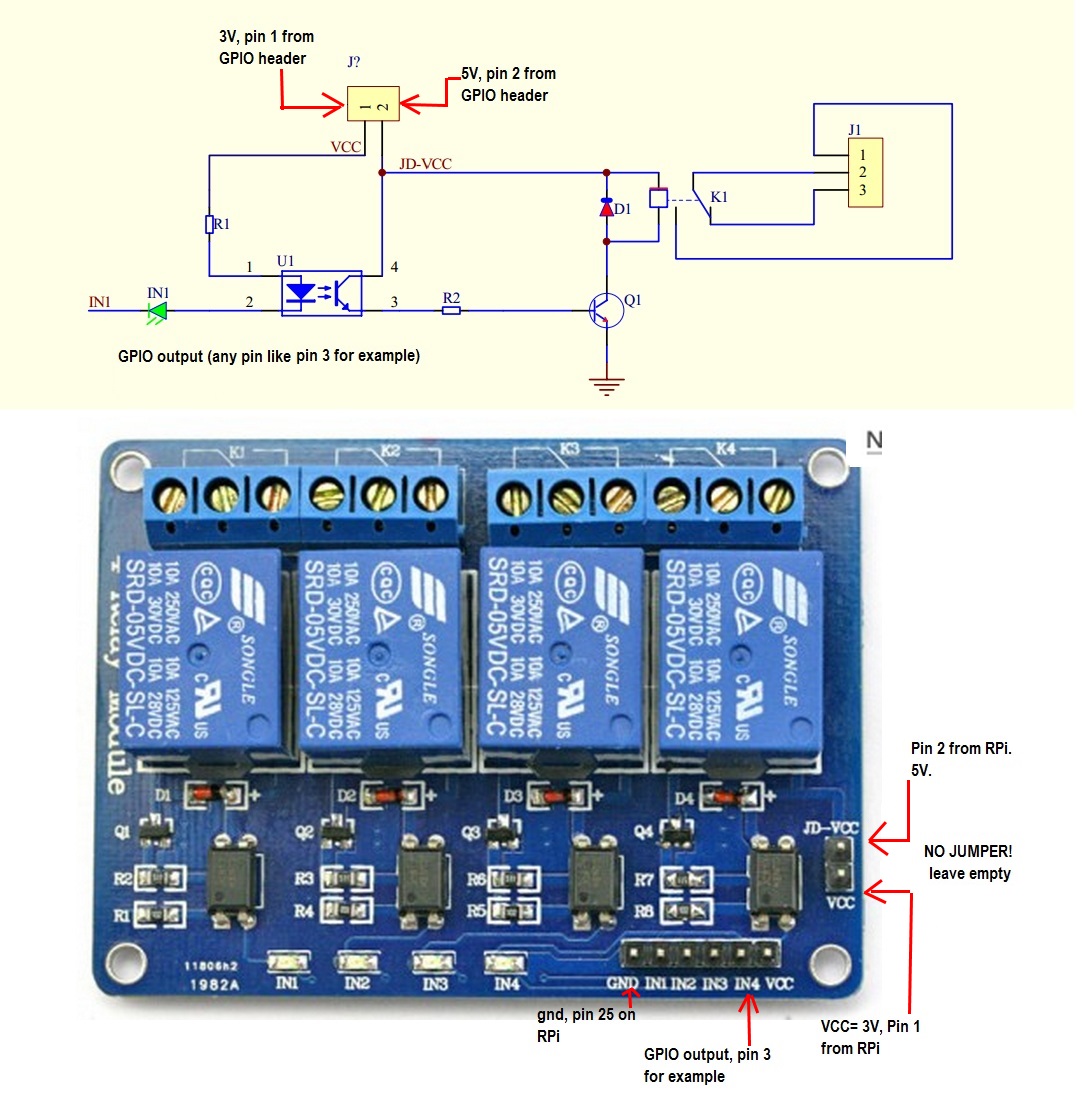

Raspberry Pi Connection Diagram:

Connections

MRE03020
