Conversor USB para RS485
  • Conversor USB para RS485
  • Conversor USB para RS485
  • Conversor USB para RS485

Conversor USB para RS485

: COM03004
18,13 €

Cabo adaptador de USB para RS485

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Introduction

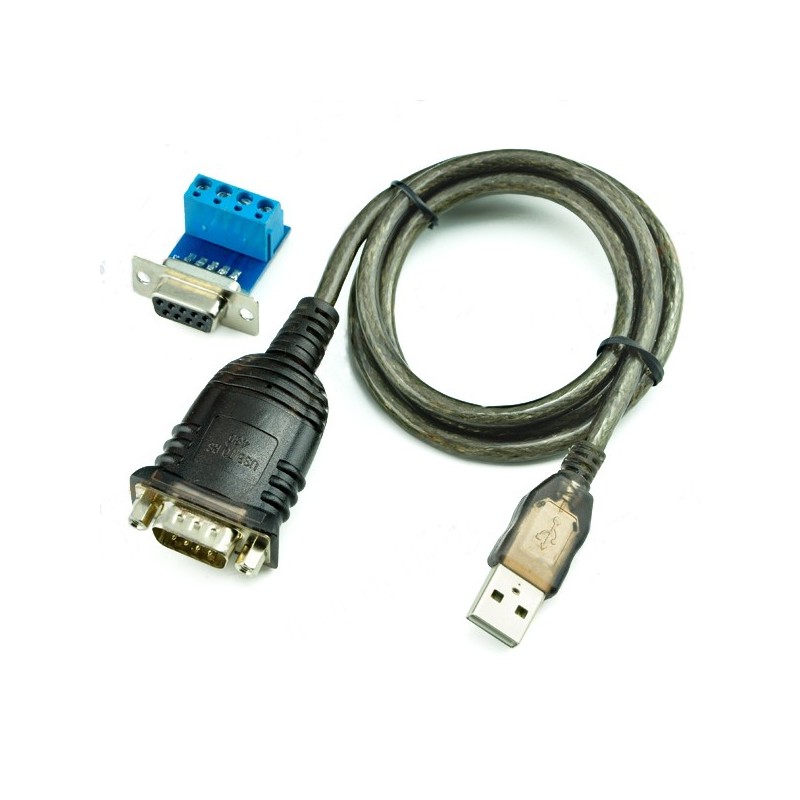

The USB 2.0 to RS485 Cable provides a simple and easy to connect between the USB and RS485 ports interface. Ideally for PC, thin client or servers to provide instant RS485 ports expansion via USB ports.



USB to RS485 industrial intelligent converter,no power supply needed,plug-and-play

USB485 is a kind of USB to RS485 industrial intelligent converter. It is the best solution for the communication between USB and RS485. Compared with RS232 to RS485 converter, USB to RS485 converter has many advantages.



Product Features:

■ RS-485 interfaces supported.

■ RS-485 interface DB PIN connector .

■ Maximum RS-485 cable length: 1200m

■ Transmission rate 300bps to 1Mbps.

■ Maximum number of devides in the RS485

network:Half Duplex to 32 devices

■ Remote wake-up and power supply management supported.

■ +/-15KV ESD Protect.

■ Direct USB power without external power supply.

■ Working environment: -40 deg.C to 85 deg.C, relative humidity 5% to 95%.

■ Windows95/98/2000/XP and NT-IMAG supported.



Cable Length:80cm

Package Content:

1x USB 2.0 TO RS485 CABLE

COM03004
