Controlador de Motores - USB/Wireless
  • Controlador de Motores - USB/Wireless
  • Controlador de Motores - USB/Wireless
  • Controlador de Motores - USB/Wireless

Controlador de Motores - USB/Wireless

:MOT01013
23,75 €
preço com IVA incluído

MotorAir! é um controlador de 2 motores USB
Com porta de expanção Wireless pode trabalhar com XBEE ou Bluetooth Bee ou WiFiBee module.

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos



Description:

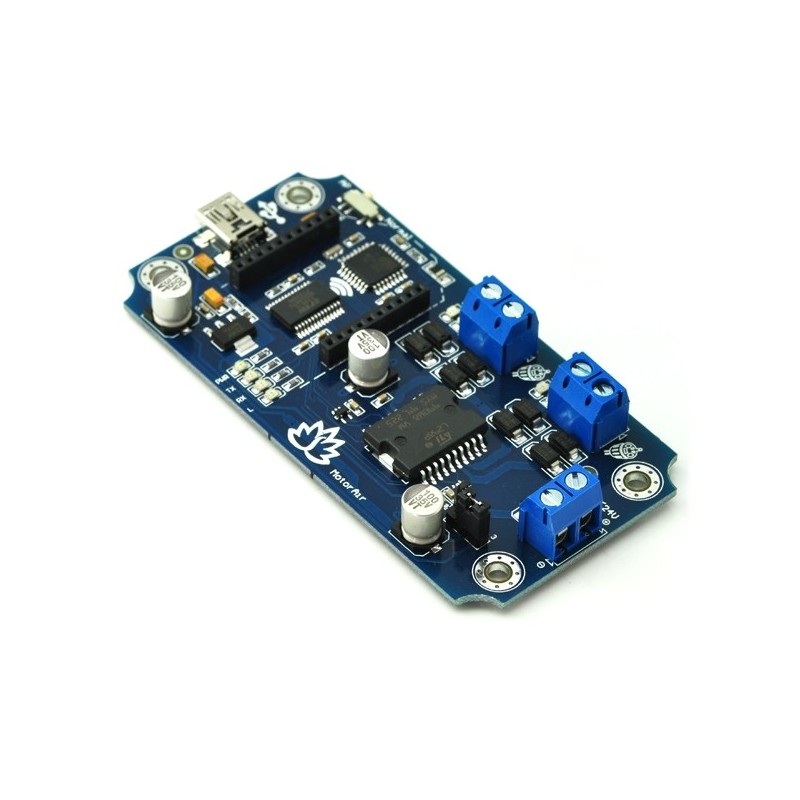

This is MotorAir! A USB dual motor driver board. It allows computer control two DC motors by using the USB port of your computer!

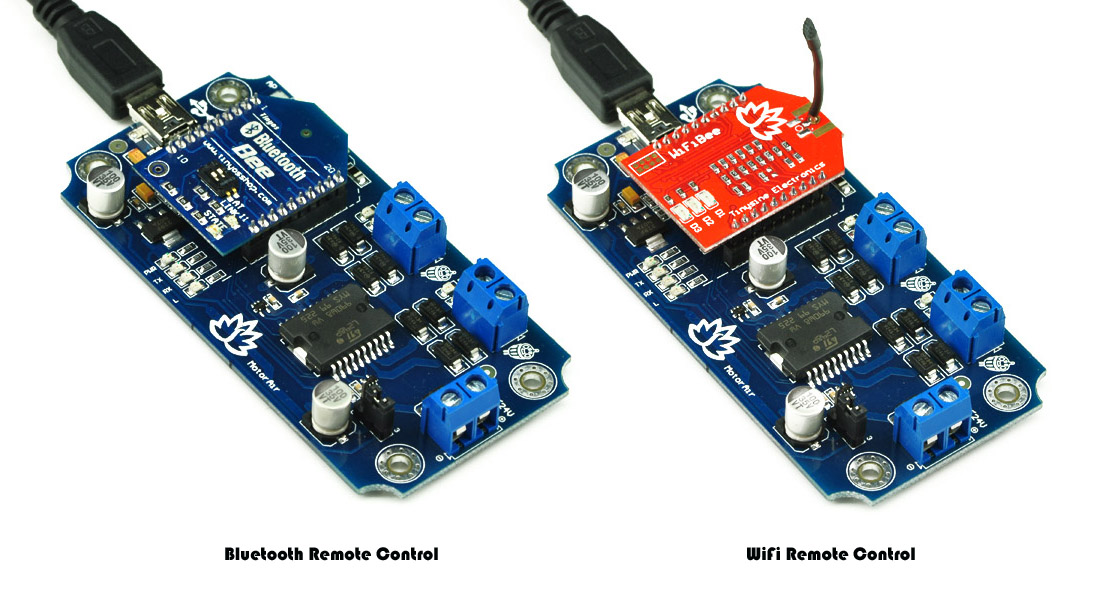

Meanwhile, It  has a wireless extension port, can work with XBEE or Bluetooth Bee or WiFiBee module, which mean now you can control your DC motors by zigbee or Bluetooth or WiFi !

The MotorAir board can be powered by USB bus or DC power and provides two motor driver ports can drive up to 2 amps per channel. You can control two DC 5-24V motors forward or backward. You can control the motor speed. Very simple and easy to use!

*USB port can output 5V/500mA maximum current. If you drive a big motor or your motor working voltage >5V. Please use external DC power supply.



First Step - Install the Driver
The MotorAir board uses FT232RL USB to UART chip . Before using the MotorAir you will need to download the FT232RL Driver.

Connect the MotorAir and windows will detect it and ask for the drivers. Point windows to the inf folder and it will install the driver.

The  MotorAir will now appear as a com port.



Commands
The MotorAir operates with an easy to use command set as described in the table below.

* For example: Drive motor A full speed forward. Send command :  0x64 0xFF

Test program

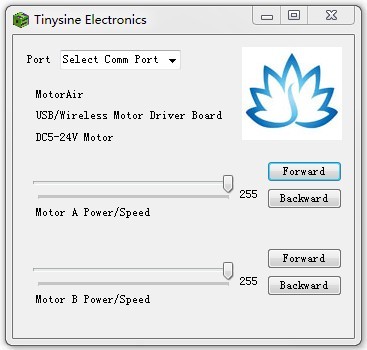

To get the MotorAir up and running in the minimum amount of time we have put together an example program to demonstrate the functionality of the module.





Documents:
FT232RL Driver
Test Program
Realterm serial debug tool
Android APP(WIFI)
Android APP(Bluetooth)
