DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
ESC (Electronic Speed Controller) can be divided into brushed ESC and brushless ESC according to the different motor types. It is widely used in the RC remote control system and we can use signal to control the speed.

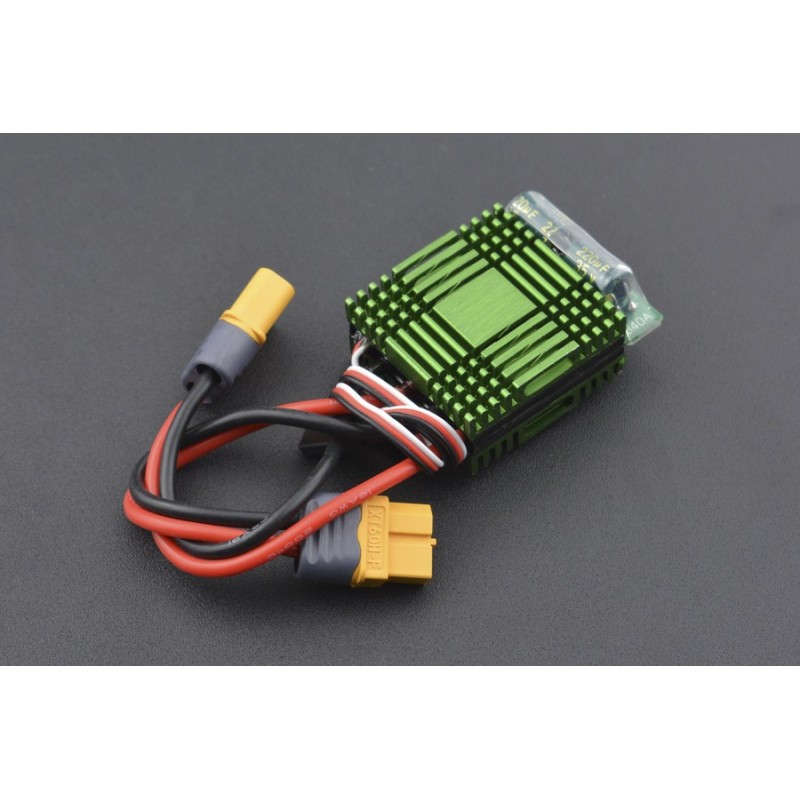

This is a 40A bidirectional brushed ESC without Brake. It can support up to 40A continuous current and 340A instantaneous current. It is controlled by PPM signal and can drive the forward and reverse rotation of the motor. Support RC remote controller of commonly used brands on the market.
NOTE:
Plug the ESC signal cable into the corresponding channel of the receiver, turn on the power of the remote controller, push the joystick of the corresponding channel to the maximum position, then, turn on the power of ESC, the indicator light will be blinking, after a few seconds, the indicator light will flash twice, then turn the joystick to the middle position, the indicator light flashes three times again, success!
