Módulo Driver Motores L298N

:MOT01063
6,42 €
  • Dual H Bridge Motor Driver
  • L298N motor driver IC
  • Drives up to 2 bidirectional DC motors
  • Integrated 5V power regulator
  • 5V – 35V drive voltage
  • 2A max drive current
Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

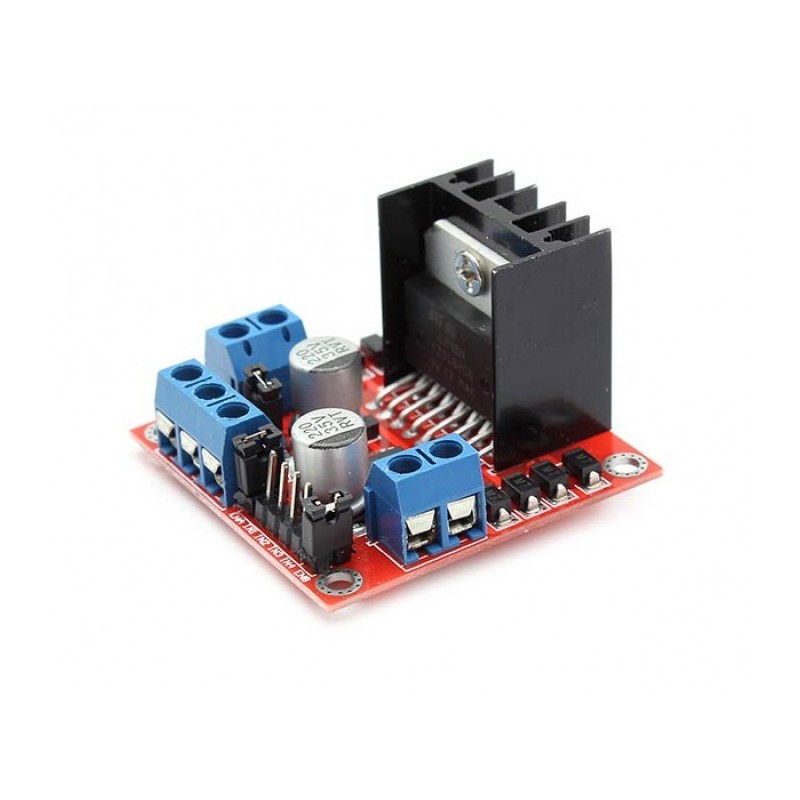

L298N Dual H Bridge Motor Driver is a motor controller breakout board which is typically used for controlling speed and direction of motors. It can also be used to control the brightness of certain lighting projects such as high powered LED arrays.

An H-bridge is a circuit that can drive a current in either polarity and be controlled by pulse width modulation.

Pin descriptions of L298N Dual H Bridge Motor Driver:

  • Out 1: Motor A lead out 1
  • Out 2: Motor A lead out 2
  • Out 3: Motor B lead out 1
  • Out 4: Motor B lead out 2
  • GND: Ground
  • 5V: 5V Logic Input
  • EnA: Enables PWM signal for Motor A
  • In1: Input for Motor A lead out 1
  • In2: Input for Motor A lead out 2
  • In3: Input for Motor B lead out 1
  • In4: Input for Motor B lead out 2
  • EnB: Enables PWM signal for Motor B

Resultado de imagem para L298N Dual H-Bridge Motor Driver

L298N Dual H Bridge Motor Driver - Technical Specifications

  • Double H Bridge Drive Chip: L298N
  • Logical Voltage: 5V
  • Drive Voltage: 5V-35V
  • Logical Current: 0-36mA
  • Drive current: 2A (MAX single bridge)
  • Max Power: 25W
  • Dimensions: 43 x 43 x 26mm
  • Weight: 26g



Example for connection with Arduino Uno:

Imagem relacionada

MOT01063
