CNC SHIELD V4 + NANO 3.0 + 3pcs A4988 REPRAP

:ARD03160
19,35 €
preço com IVA incluído

Com este kit de Hardware poderá controlar a sua máquina CNC ou impressora 3D.

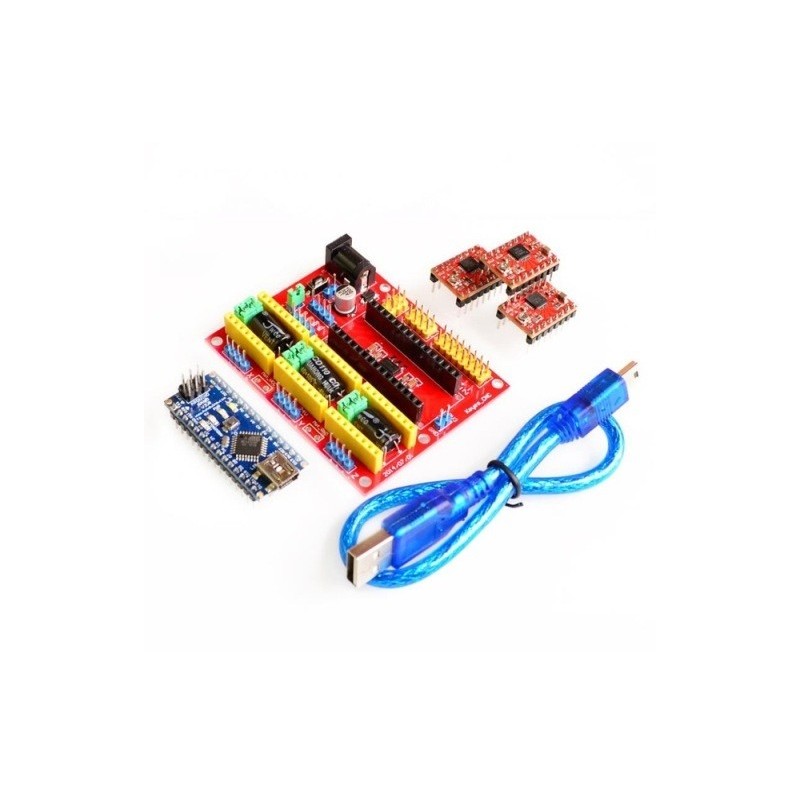

Este pack inclui:

1 x Placa de Expansão CNC Shield V4
1 x Arduino Nano

1 x Cabo USB
3 x Drivers A4988 + Dissipador



Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Features:

1. This expansion board as a driver expansion board, can be used for engraving machines, 3D printers.
2. Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine,.
3. 2A can be controlled within the two-phase four-wire stepper motor.
4. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.
5. Released the I2C interface, you can connect to the LCD I2C or other I2C module.
6. Power DC5V interface, 7.5-12V voltage input.
7. Can worked with nano
8. It is a total of four slots, can drive four A4988 stepper motor.
9. UNO for Arduino module IO port correspondence introduction.


Documentation download: Click to open

Package included:
1 x CNC Shield V4 Expansion Board
1 x Nano module
1 x USB Cable
3 x A4988 driver + heatsink

ARD03160
