Driver para Motor Passo-Passo 4,5A - TB6600

:MOT01052
12,93 €

Este Driver para Motor de Passo é baseado no TB6600 da Toshiba, tem uma capacidade e eficiência no controle do passo, através do acoplamento óptico 6n317 garante alta velocidade sem perder o passo.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

TB6600 Single-Axis Stepper Motor Driver

This TB6600 is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver. Forward and reverse rotation control is available with 2-phase, 1-2-phase, W1-2-phase, 2W1-2-phase, and 4W1-2-phase excitation modes. 2-phases bipolar-type stepper motor can be driven by only clock signal with low vibration and high efficiency.

Features:

  • The output current is infinitely adjustable to meet your various application requirements.
  • Automatic half current function and a semi-automatic flow switch.
  • The use of high-speed optical coupling 6N137 ensure high-speed without losing step.
  • Printed on the back panel are subdivided setup instructions.
  • Used to increase the heat sink, good heat dissipation.
  • output short-circuit protection, the use of mind.
  • Using common anode input mode, there are two input terminals, wiring more convenient.

Specifications:

  • DC Supply Voltage: 12-25 V
  • Output Current: 0-4.5A adjustable – Trimpot
  • High-speed optical coupling 6N137
  • Over-current and short-circuit potection
  • Thermal shut down (TSD) protection
  • Size: 80 x 50 x 35 mm
  • Weight: 110g

Screenshot from TB6600HG datasheet about microstepping and standby settings

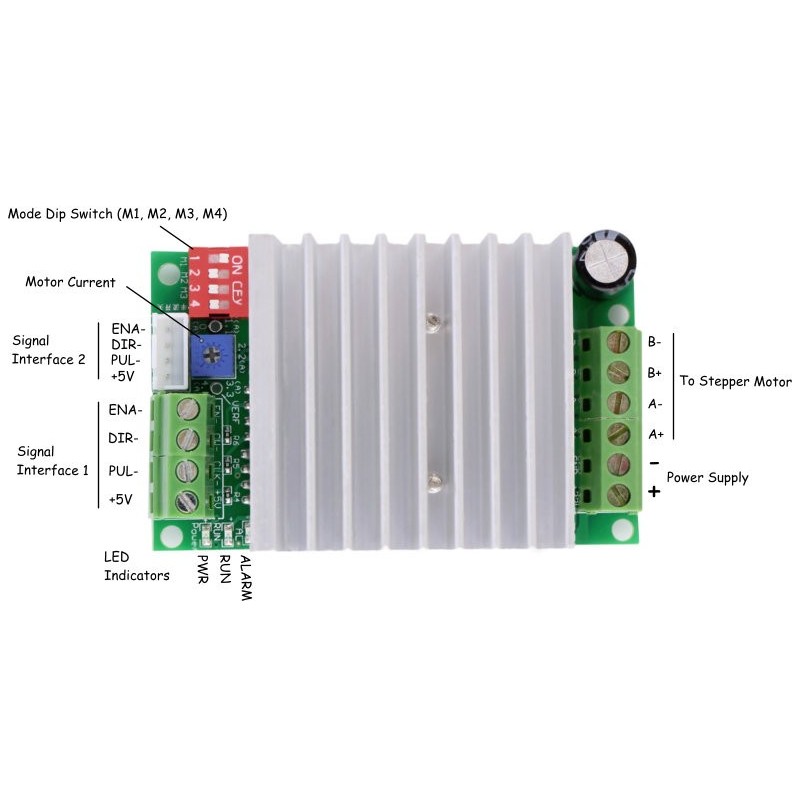

Board Layout





Microstep Setting – M1, M2, M3

TB6600 Stepper Current Setting

The trimpot can be adjusted according to the stepper motor current rating.



Typical Application



More info:

Wiring and running TB6600 stepper driver with Arduino



Contains:
01 - Tb6600 Step Motor Driver Open 45v 4,5A
