Variador Velocidade motor DC até 40VDC e 8A

:MOT01049
8,90 €
preço com IVA incluído

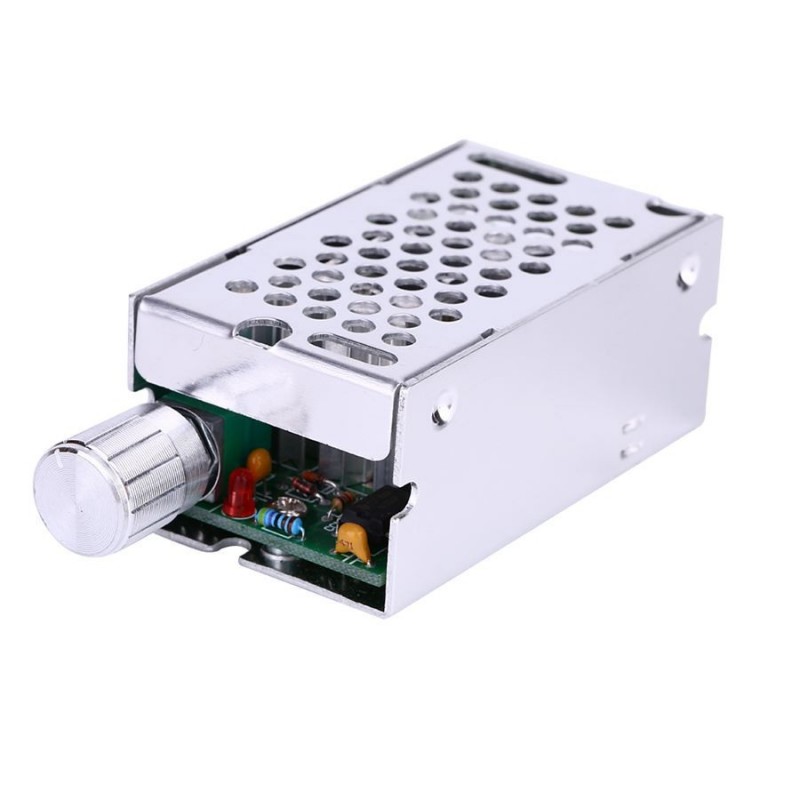

Controlador de velocidade por PWM que permite variar a velocidade de motores DC.

DESCONTINUADO

Sugerimos a seguinte alternativa:

MOT02050

Quantidade
Sem Stock


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Specifications:
Operating Voltage: DC 12V/24V/36V/60V
Rated Current: 8A
Max. Current: 10A
Control Power: Max. 400W
Speed Control Range: 10% -100%
PWM Frequency: 21KHz
Item Size: 90 * 40 * 3mm / 3.54 * 1.57 * 1.18in
Item Weight: 79g / 2.8oz


Features:
Wide range of operating voltage: 12V, 24V, 36V, 60V, max. power: 400W.
A good speed controller for DC brush motors.
High-frequency capacitance, power tube and 10A fuse are used in the module.
Adopts sealed and high-quality potentiometer with switch, stable performance.
Metal case creates better durability; high efficiency and low noise.
Suitable for applications like fans, etc. providing nice adjustment of motor speed.

Notice:
1. This speed controller is applicable to DC brush motor, not the DC brushless motor; it can't be used as voltage regulator.
2. It should be connected with DC voltage, don't connect with AC voltage(e.g. 220V AC).
3. The anode and the cathode of DC power cannot be connected reversely, otherwise the controller will be damaged.
4. When running direction is inconsistent with your desire, you can change it by adjusting the linear order.
5. Potentiometer switch can change the output duty cycle of controller and then change the motor speed.

MOT01049
