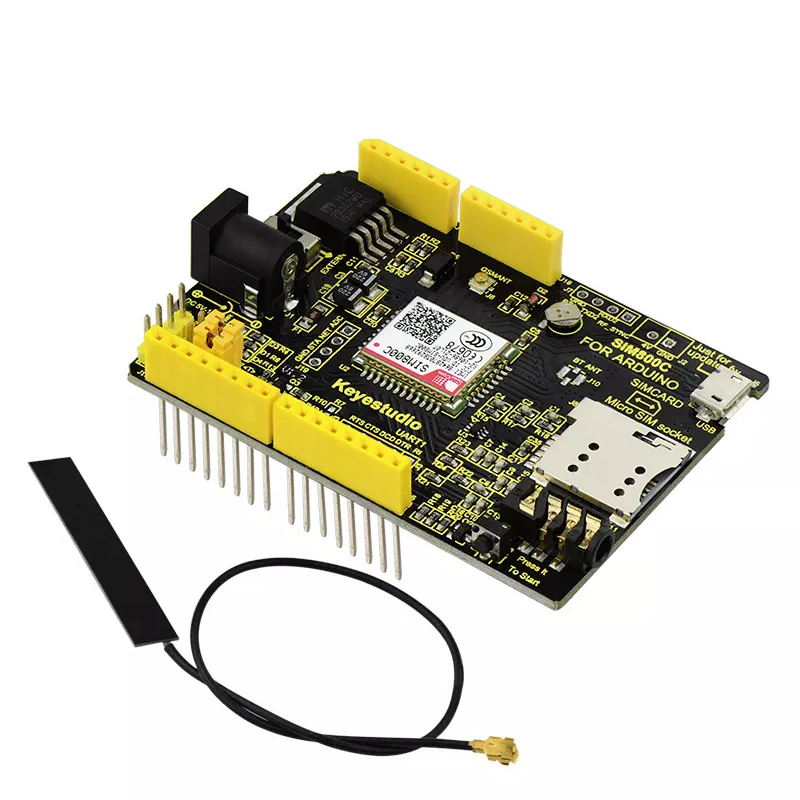

Shield GPRS GSM SIM800c com Antena - Keyestudio KS0254

: ARD03191
14,39 €

Este Shield da Keyestudio incorpora o chip SIM800 e funcina com a frequência de EGSM 900MHz / DCS 1800MHz e GSM850 MHz / PCS 1900MHz. Este Shield dispões também das funções: DTMF, FTP, Bluetooth, SMS, entre outros. Podes controlar esta placa através de um Arduino Mega ou Arduino UNO (não incluídos).

Quantidade

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction:

This is a GPRS/GSM expansion board for Arduino.
The shield supports the frequency of EGSM 900MHz /DCS 1800MHz and GSM850 MHz /PCS 1900MHz, integrated with GPRS, DTMF and other functions.
It also supports DTMF. When enable the DTMF function, get the character feedback converted from the pressed button during the call, which can be used for remote control.
It is controlled by the AT command, you can directly start the function through the computer serial port and Arduino motherboard.
The SIM800C GPRS shield has a built-in SIM800H chip from SIMCom, with good stability.



Specifications:

  1. Power Supply :  7-12V
  2. Low power consumption:  0.7mA current in sleep mode
  3. Low battery consumption  100mA @ 7V-GSM mode
  4. GSM 850/900/1800/1900MHz
  5. GPRS multi-slot class  1 ~ 12
  6. GPRS mobile station class B
  7. GSM phase 2/2 + standard
  8. Class 4 (2W @ 850/900 MHz)
  9. Class 1 (1W @ 1800 / 1900MHz)
  10. Controlling via AT command
  11. USB /Arduino control switch
  12. Serial baud rate self-adaption
  13. Support DTMF
  14. LED indicator for power supply status, network status and operating mode.



Technical Details:

  1. Dimensions: 77mm x 52mm x 27mm
  2. Weight: 26g
  3. Antenna length: 180mm



Documents:

Wiki Page
