• DESCONTINUADO

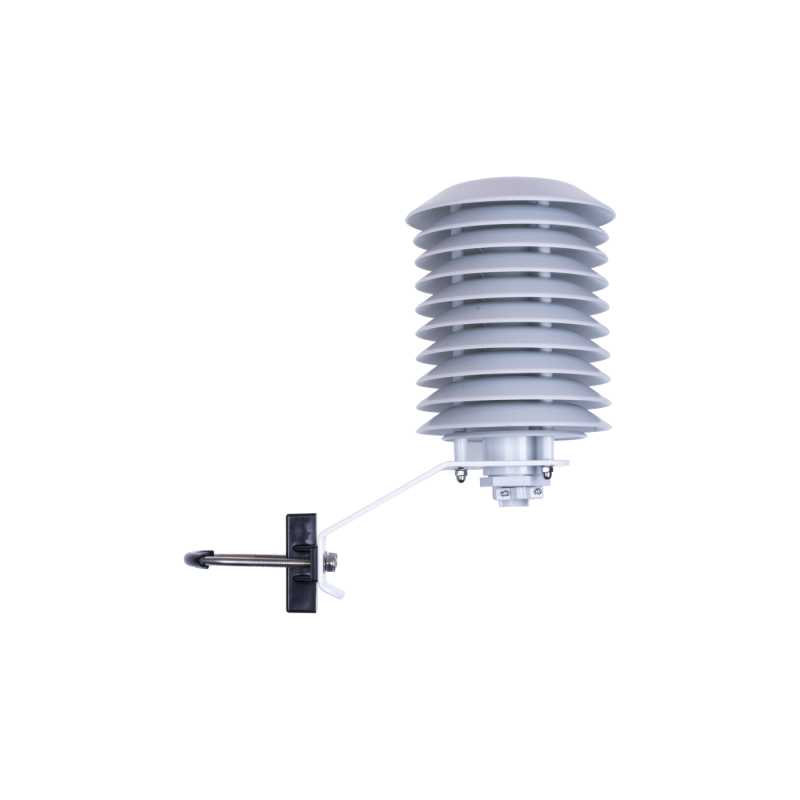

Protetor de radiação solar para Sensores Ambientais

:ELT02043
54,50 €
preço com IVA incluído

Pretende construir a sua própria estação meterorológica, mas não tem forma de proteger os vários sensores da radiação solar e precipitação?

Este é o produto ideal, para garantir a precisão dos dados e que os seus equipamentos ficam a salvo do desgaste provocado pela ação do sol!

Pode ser usado com diversos tipos de sensores, como temperatura do ar, húmidade, pressão atmosférica, CO2, NO2, PM2,5, PM10 e outros sensores de gás.

Nota: É apenas a caixa e suporte, não incluí nenhum tipo de sensor!


DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

PRODUCT DETAILS

The Solar Radiation Shield for Outdoor Sensor Protection - A10 is a high-quality product that protects sensors from the weather, avoids producing errors due to solar radiation and precipitation, thus ensure data accuracy. It's applicable for different gas sensors, such as air temperature, humidity, barometric pressure, CO2, NO2, PM2.5, PM10 sensors, just to name a few.



This Solar Radiation Shield features robustness, high flexibility, low thermal conductivity, and anti-ultraviolet, making it widely applicable in outdoor severe environments.



The geometry design of this Shield can protect the sensors from all directions, including direct solar radiation and solar reflection from the ground. It also helps protect the sensors in severe weather conditions such as strong winds, rain, and snow, etc.



Air can flow through the Shield freely, making sure the sensors work soundly with accurate data in ventilated environments. The combination of plate geometry, robust material, and natural ventilation enables effective shielding. It also supports the integration of various sensors.



Features

  • Robustness, suitable for outdoor application scenarios
  • Effectiveness, shielding the sensors from solar radiation and reflection
  • Easy installation, mountable on flat and curved surfaces

Specifications

Product Model A10
Number of Plates 10
Materials

Engineering plastic plates;

stainless steel brackets & screws.
Inner Diameter 30mm
Outer Diameter 130mm
Internal Height  135mm
Accessories for Installation Stainless steel bracket
Operating Temperature -40 ℃ to +85 ℃
Weight 517g


Applications

  • Smart Agriculture
  • Smart Cities
  • Smart Buildings
  • Weather Stations
  • Other Environmental Monitoring Applications

Notes for Installation

  • Please make sure the device is installed in environments with good air circulation.
  • Please keep the device away from metal objects and large items such as asphalt, masts, and solar panels.
  • Please keep the device away from exhaust vents, electrical machinery, and motors.
  • Please keep the device away from standing water, fountains and sprinklers.
