DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.

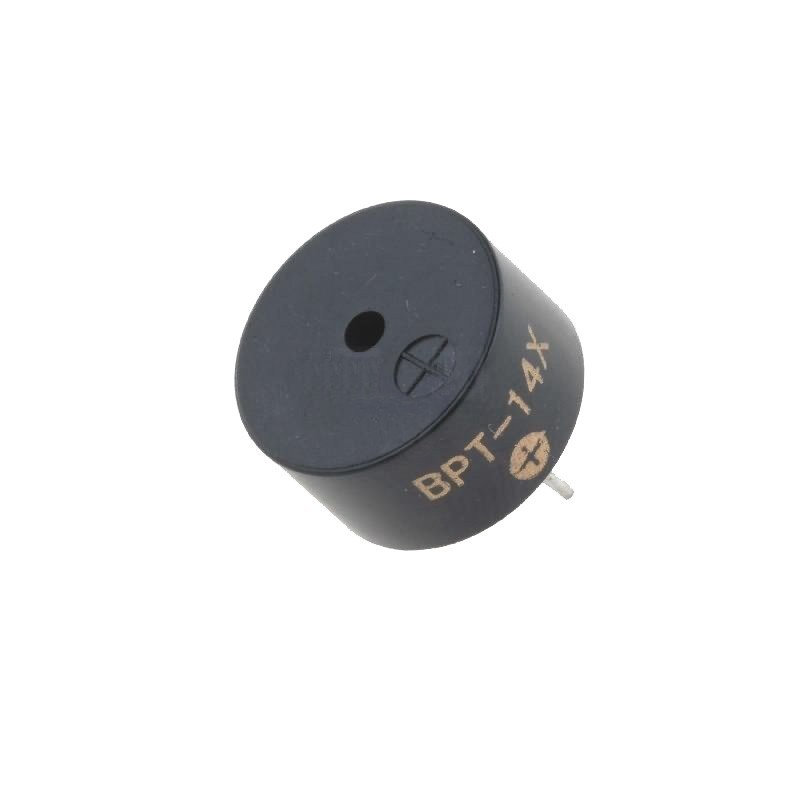

Type of sound transducer | piezo alarm | |
Sound transducer features | with built-in generator | |
Mounting | THT | |
Resonant frequency | 4kHz | |
Operating current | 7mA | |
Operating temperature | -20...70°C | |
Diameter | 13.8mm | |
Height | 7.5mm | |
Operating voltage | 3...16V DC | |
Sound level | 80dB (d=0.1 m) | |
Kind of sound | continuous | |
Resonant frequency tolerance | ±500Hz | |
Terminal pitch | 7.6mm |
