Step-up 5V 2.1A para Baterias 18650 com Gestão de Carga e Protecção

: FAL08065
3,66 €

4 in 1 Charging + Discharging + Lithium Battery Protection + Battery Level Indicator Module. Lithium battery protection function: over-current, overvoltage, over-temperature, short circuit protection.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

MH-CD42 DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650



  • MCU users, if you accept a small load KEY can be connected to the microcontroller about 20s to provide a low level allows the module to continue working. Trigger mode: low level trigger (ground)
  • In discharge mode (The charging mode KEY function is invalid), trigger the KEY port once to open the output; continuously trigger the KEY port twice to close the output.
  • The first time the load is connected, the output is automatically turned on. If the load is less than 50MA, the output will be automatically turned off after 30 seconds; if the load is greater than 50MA, the output will be automatically turned on.
  • Allow discharge while charging. (Note: At this time output voltage 4.7 / 5V)



Product Parameters
Charging voltage: DC4.5V-5.5V (recommended DC5V)
Charging current: 0-2.1A
Charging quiescent current: 100uA
Full voltage: 4.2V ± 1%
Discharge current: 0-3.5A
Discharge quiescent current: 50uA
Discharge efficiency: up to 96%
Output voltage: 5V
Output current: 0-2.1A
Ambient temperature: -20~+85°C
The module comes with a lithium battery protection function (for lithium batteries without protection, with protection board)
Overcurrent protection (OCP)
Overvoltage protection (OVP)
Short circuit protection (SCP)
Over temperature protection (OTP)
Charge and discharge power level 4 interval indication

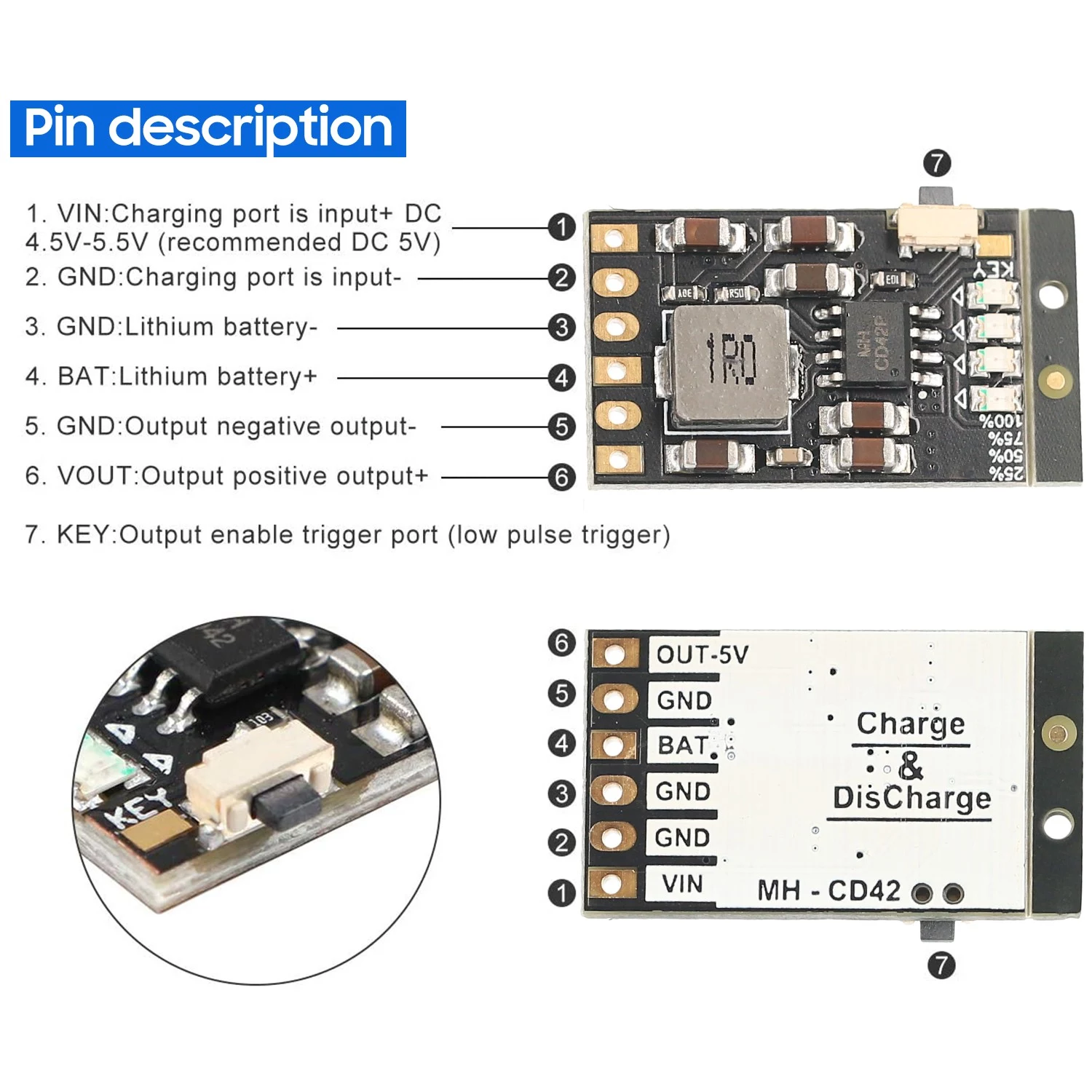

Pin Description
VIN: The correct input of the charging port + (DC4.5V-5.5V (recommended DC 5V)
GND: negative input of the charging port -
GND: Lithium battery -
BAT: Lithium battery +
GND: Output negative output -
VOUT: Output positive output +
KEY: Output enable trigger port (low pulse trigger)

Note
In the discharge mode (the charging mode KEY function is invalid), the KEY port is triggered once, and the output is turned on; the KEY port is continuously triggered twice, and the output is turned off.
When the load is first connected, the output will be automatically turned on. If the small fish 50MA is loaded, the output will be turned off after 30 seconds; if the load is greater than 50MA, the output will be continuously turned on.
 Allow one side to discharge while charging (Note: this is the output voltage >4.7/<5V)
