Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822
  •  Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822
  •  Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822
  •  Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822
  •  Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822
  •  Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822

Kit de avaliação c/ módulo Bluetooth 4.0 NRF51822

:COM01014
17,50 €
preço com IVA incluído

Placa de desenvolvimento para o módulo NRF51822 (já incluido neste kit!).

É o kit ideal para começar desde já a programar o seu módulo nRF51822 e tirar o máximo partido das suas potencialidades.

Ponha em prática as suas ideias para um novo dispositivo sem fios!

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.



Overview

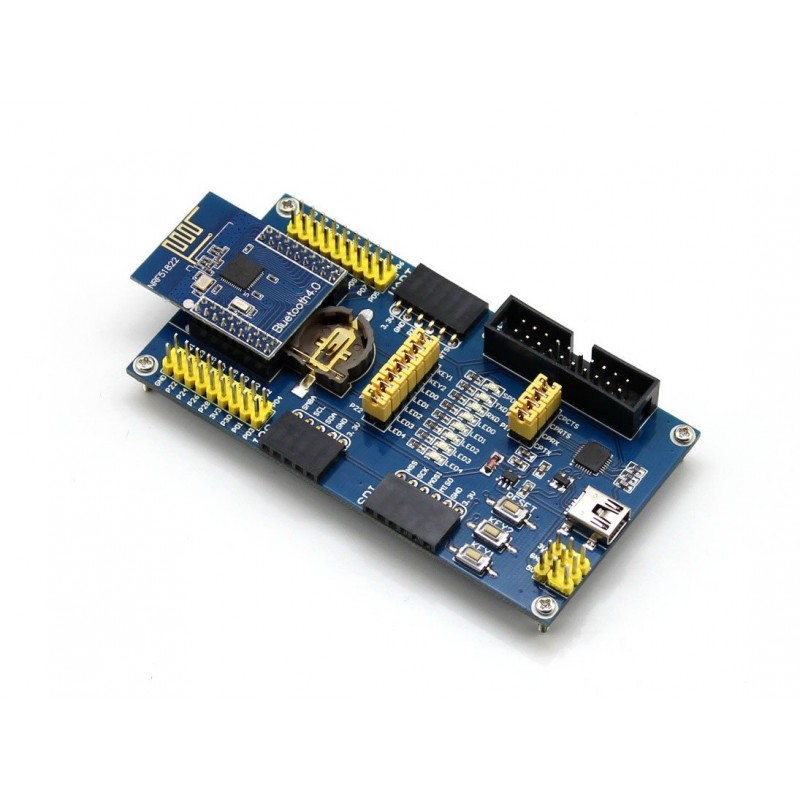

NRF51822 Eval Kit is a development/evaluation kit designed for nRF51822, consists of the mother board BLE400 and the wireless module Core51822.



BLE400 Features

  • Onboard battery holder, multi power supplies are available
  • All the IOs are accessible for easy expansion
  • Integrates CP2102 for debugging
  • LEDs and user keys, compatible with other official boards, easy to use



What's on the BLE400

Bluetooth 2.4G RF development board on board resource

  1. Wireless module connector: for easily connecting modules like Core51822
  2. MCU pins expansion connector
  3. I2C interface
  4. SPI interface
  5. 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
  6. USB connector: USB TO UART via onboard convertor CP2102
  7. Debugging interface
  8. UART interface
  9. Battery holder
  10. User LEDs
  11. User keys
  12. Reset button
  13. CP2102
  14. USB TO UART jumper
  15. LEDs & Keys jumper



BLE400 Dimension

BLE400 Dimension

Core51822 Specifications

  • Onboard chip: nRF51822
  • Communication distance (open outdoor@1M data rate): 30m
  • Frequency range: 2.4GHz
  • Operating voltage: 2.0V ~ 3.6V
  • Operating temperature: -40℃ ~ 85℃
  • Dimension (PCB): 24.5mm x 32.26mm
  • Expansion pinheader: all the I/Os except P0.26 and P0.27
  • Pinheader pitch: 2.00mm
  • Spacing between pinheaders on the left side and the right side: 18.00mm
  • Antenna: onboard antenna



nRF51822 Features

  • 2.4 GHz multiprotocol RF transceiver
  • ARM® Cortex™-M0 32 bit processor
  • 128 bit AES HW encryption
  • 256kB flash & 32kB RAM
  • Programmable Peripheral Interconnect (PPI)
  • Digital interfaces: SPI, I2C, UART
  • 10 bit ADC
  • Programmable output power: -20 to +4 dBm
  • Independent application development and protocol stack
  • Fully compatible with NRF24L series
  • Pinout compatible with NRF51xxx series
  • Global separate power management
  • Operating voltage: 1.8 V ~ 3.6 V



Applications

  • Wearable devices
  • Bluetooth intelligent application
  • Mobile phone accessories
  • RFID labels
  • Smart home appliances
  • Industry control
  • Data acquisition system



Revision History

  • 2015.06, Core51822 upgrades the onboard chip to Rev3, features 32kB RAM, supports higher version SDK, and all the demo codes are still compatible with the Rev2 ones.



Core51822 Expansion Headers

Core51822 Expansion Headers



Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/NRF51822_Eval_Kit



Optional Items

COM01014
