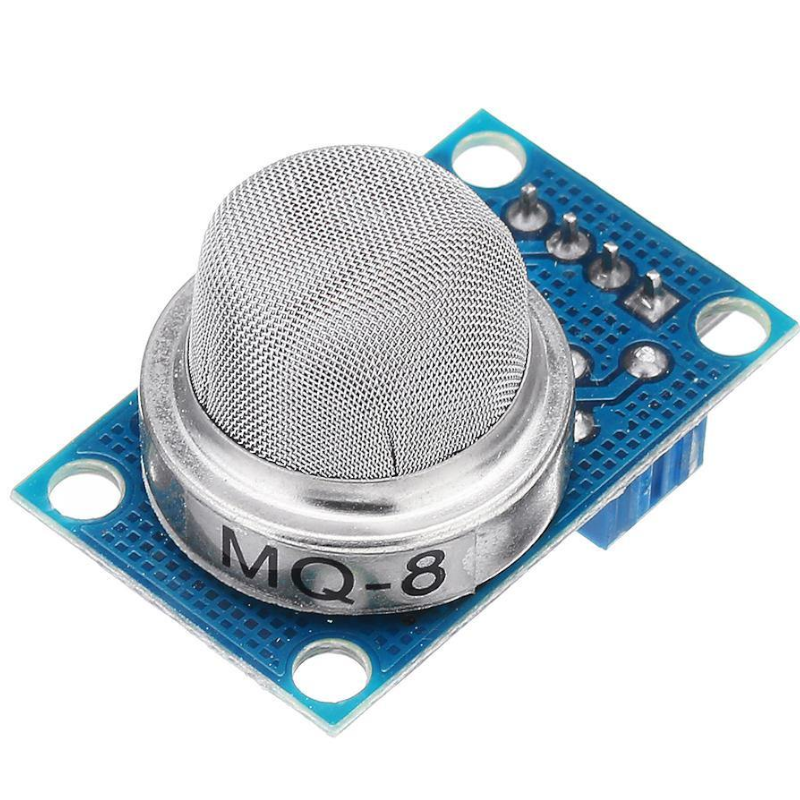

Módulo de sensor de gás hidrogênio MQ-8

: SEN08106
2,95 €
preço com IVA incluído

Módulo sensor de gás MQ-8, ideal para detetar fugas de hidrogénio (H2) e outros gases inflamáveis. Tem saída digital (TTL) e analógica, boa sensibilidade, resposta rápida e longa durabilidade. Perfeito para projetos DIY, sistemas de segurança doméstica/industrial, monitorização de fugas em laboratórios ou postos de abastecimento, e projetos com Arduino/microcontroladores.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

A sensitive material MQ-8 Hydrogen Gas Sensor Module H2 Alarm Detection use in clean air low conductivity tin oxide (SnO2). When there is the environment in which the combustible gas sensor, conductivity sensor with increasing concentration of combustible gases in air increases.

Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal. MQ-8 hydrogen gas sensor of high sensitivity, the monitoring of the other hydrogen-containing gas is also very satisfactory.

This sensor can detect a wide range of hydrogen gas, city gas, in particular, is a low-cost sensor for a variety of applications.

Suitable for home or industrial hydrogen leakage monitoring devices. Can not interfere with ethanol vapor, soot, carbon monoxide, and other gases.



Technical Details: MQ-8 Hydrogen Gas Module

  1. Item Type: Gas Sensor

  2. Operating Voltage (V): 5

  3. Current Consumption (mA): 150

  4. Additional Specs:

  5. Ao output: 0.1-0.3 V (Relative to Pollution)

  6. Do output: TTL digital 0 and 1 (0.1V and 5V)

  7. Size: 32mm x 20mmx 18mm

  8. Weight (g): 8



Features

  1. Uses high-quality dual-panel design, with power indicator and TTL signal output instructions

  2. The switching signal has a DO (TTL) output and analog output AO

  3. TTL output valid signal is low (Low-level signal when the output light can directly connect to the microcontroller or relay module)

  4. The higher the voltage, the concentration of the analog output voltage is higher

  5. Hydrogen gas detection with good sensitivity

  6. Four screw holes for easy positioning

  7. Has a long life and reliable stability

  8. Rapid response and recovery characteristics

SEN08106
