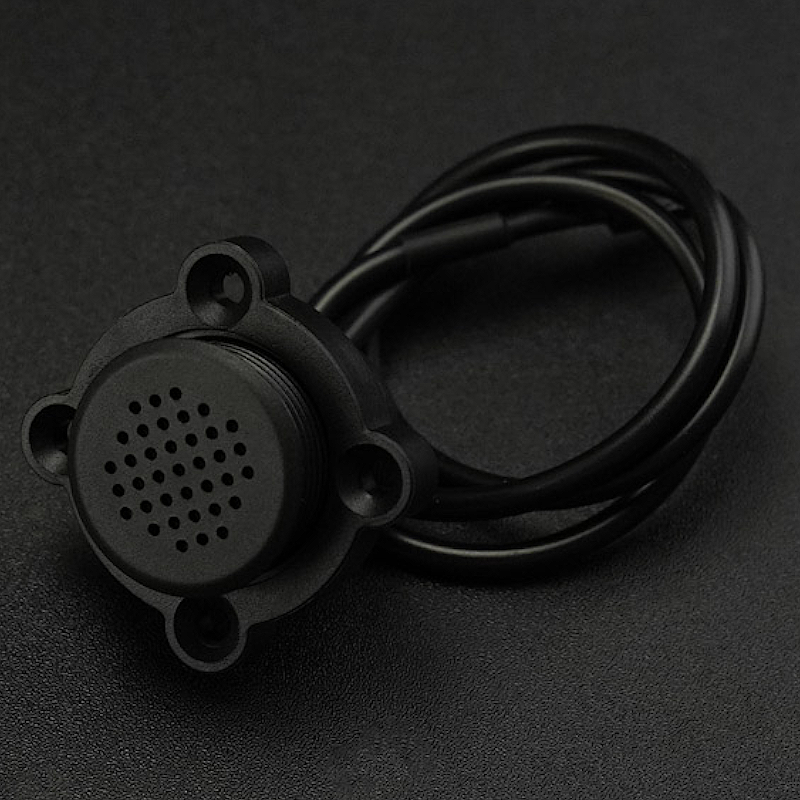

Sensor Monóxido de Carbono CO (0-1000ppm) com indicação luminosa por threshold - DFRobot SEN0596

:SEN08083
27,50 €
preço com IVA incluído

Este sensor de monóxido de carbono é um pouco diferente da maioria dos sensores de gás existentes no mercado, uma vez que não fornece dados específicos de concentração de gás. Em vez disso, este sensor deteta se um determinado meio ambiente excede ou fica abaixo de um limiar fixo. Funciona com uma vasta gama de tensões de 5-24V o que o torna bastante compatível com vários controladores, com saídas de nível alto e baixo. O sensor está equipado com uma luz indicadora para uma fácil observação do seu estado, tornando-o assim bastante amido do utilizador.

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Introduction

This carbon monoxide gas sensor differs from most gas sensors on the market as it does not provide specific gas concentration data. Instead, it detects whether the surrounding environment exceeds or falls below a fixed threshold. It operates on a wide voltage range of 5-24V, with high and low-level outputs.

The sensor is equipped with an indicator light for easy observation of its status, making it user-friendly. When the sensor detects a gas concentration above the threshold, it outputs a high-level signal and the indicator light illuminates. Conversely, when the concentration falls below the threshold, it outputs a low-level signal and the indicator light turns off.

Carbon Monoxide Detection Sensor Overview

Note: The threshold of this sensor is factory-fixed and cannot be modified by the user. Custom threshold parameters can be set for bulk orders.

If you need to measure Carbon Monoxide concentration accurately, we recommend the Fermion: MEMS Carbon Monoxide CO Gas Detection Sensor.

Dimension Diagram of Carbon Monoxide Detection Sensor

Dimension Diagram of Carbon Monoxide Detection Sensor



Connection Port Diagram of Carbon Monoxide Detection Sensor

Connection Port Diagram of Carbon Monoxide Detection Sensor



Features

  1. Threshold-based detection

  2. Wide voltage range, 5-24V

  3. High and low-level outputs

  4. Indicator light for status observation

  5. User-friendly design



Applications

  1. Indoor air quality monitoring

  2. Safety and occupational health

  3. Environmental monitoring

  4. Smart home systems

  5. Research and development



Specification

  1. Power Supply Voltage: 5-24V

  2. High level output range: 5-24V（Output high voltage = supply voltage）

  3. Load Current: ＜100mA

  4. Static Current: ＜10mA

  5. Detectable Gas: Carbon Monoxide (CO)

  6. Repeatability: ＜2% of the output value

  7. Threshold: 20ppm (Factory-fixed threshold, cannot be modified by the user)

  8. Maximum Load: 1000ppm

  9. Response Time: ＜15s

  10. Zero-Point Output: ±2ppm

  11. Output Mode: High-level and low-level signals

  12. Line sequence: Black line -OUT, Brown line -VCC, Blue line -GND

  13. Pressure Range: 1±0.1 standard atmospheric pressure

  14. Lifespan: 8 years (in air)

  15. Storage Environment: 10°C ~ 30°C

  16. Operating Temperature Range: -10°C ~ 50°C

  17. Operating Humidity Range: 15% ~ 90% RH

  18. Dimensions: L*W*H=30.35*47.4*47.4mm

  19. Cable Length: 50cm

  20. Housing Material: Black PCV0 flame-retardant material



Shipping List

  1. Carbon Monoxide Detection Sensor x1

SEN08083
